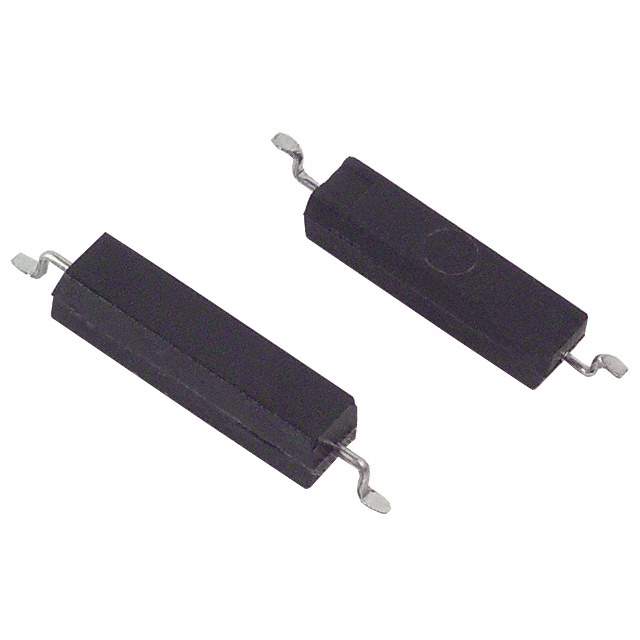

MK17-B-2 Real Image
Same model may have multiple batches, images only for reference.

MK17-B-2

Part No MK17-B-2
Manufacturer Standex-Meder Electronics
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 500MA 170V
Datasheet
MK17-B-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Standex-Meder Electronics
Packaging Reel - TR
Status Active
Type Molded Body
Circuit SPST-NO
Operate Range 10 to 15AT
Current - Switching 500mA (AC/DC)
Voltage - Switching AC 170V
Voltage - Switching DC 170V
Power - Rated 10W
Operate Time 0.6ms
Release Time 0.05ms
Mounting SMD (SMT)
Termination Style Gull Wing
Length - Overall 0.484" (12.30mm)
Size - Body 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm)
Height Above Board 0.083" (2.10mm)
Temperature Range - Operating -40°C to 130°C
Capacitance 0.4pF
Current - Carry 500mA (AC/DC)
Win Source Part Number 023380-MK17-B-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MK17-B-2 CAD Model

Description

The Standex-Meder Electronics MK17-B-2 is a high popularity molded body switch.

  • Popularity: High
  • Capacitance: 0.4pF
  • Circuit: SPST-NO
  • Operate Time: 0.6ms
  • Release Time: 0.05ms
  • Height Above Board: 0.083 inches (2.10mm)
  • Mounting: SMD (SMT)
  • Termination Style: Gull Wing
  • Power Rated: 10W
  • Operate Range: 10 to 15AT
  • Current Switching: 500mA (AC/DC)
  • Voltage Switching AC: 170V
  • Voltage Switching DC: 170V
  • Body Size: 0.335 inches L x 0.083 inches W x 0.083 inches H (8.50mm x 2.10mm x 2.10mm)
  • Current Carry: 500mA (AC/DC)
  • Operating Temperature: -40°C to 130°C
  • Supply and Demand Status: Balanced
