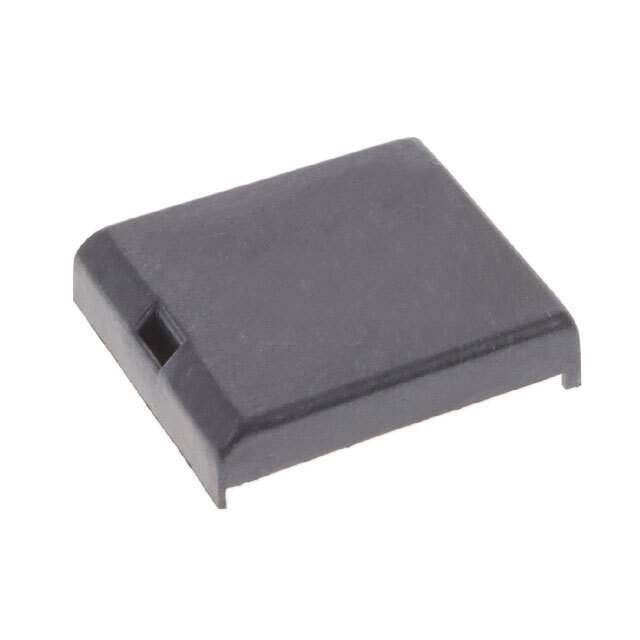

Maxim Integrated DS9034PCX+ Product Overview

The DS9034PCX+ is a high-quality, reliable nonvolatile (NV) SRAM controller from Maxim Integrated, designed to provide a comprehensive memory solution for a wide range of applications. This innovative product ensures data integrity by automatically switching to a backup energy source in the event of a power failure, thus preserving the contents of the SRAM.

Key Features

• Power-Fail Protection: The DS9034PCX+ comes equipped with a sophisticated power-fail circuit that monitors the VCC supply voltage. It automatically switches to the backup energy source when it detects an out-of-tolerance condition, ensuring the preservation of data.
• Low Energy Consumption: Designed for efficiency, this NV SRAM controller operates with a minimal energy requirement, making it suitable for battery-backed applications where power conservation is critical.
• Compatibility: The device is compatible with standard JEDEC SRAMs, providing designers with flexibility and ease of integration into existing systems.
• Compact Form Factor: The DS9034PCX+ is available in a compact, surface-mount PowerCap package, which not only saves space on the PCB but also simplifies the installation process.

Applications

The versatility of the DS9034PCX+ makes it ideal for a multitude of applications, including:

• Industrial control systems
• RAID systems
• Telecommunications equipment
• Automotive systems
• Medical devices

Technical Specifications

With a wide operating temperature range and robust design, the DS9034PCX+ is engineered to perform reliably in harsh environments. Its technical specifications include:

• Operating Voltage Range: 2.7V to 3.6V
• Operating Temperature Range: -40°C to +85°C
• Package Type: PowerCap

Maxim Integrated's commitment to quality ensures that the DS9034PCX+ meets the highest standards of performance and reliability, making it a smart choice for designers looking to secure data in nonvolatile memory applications.
