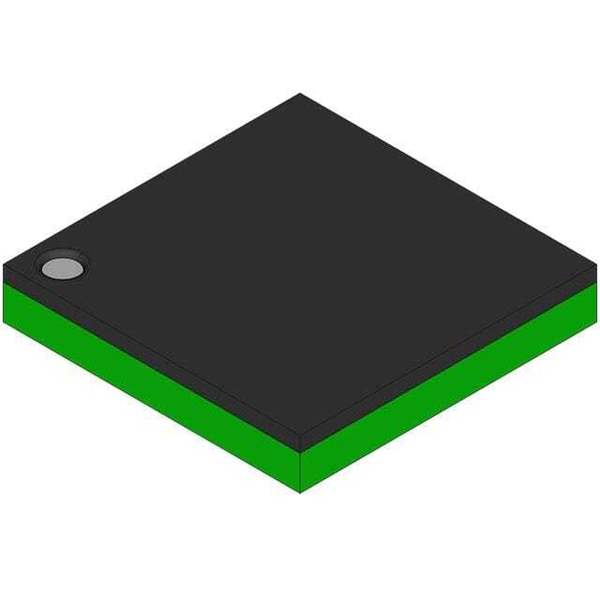

Maxim Integrated DS2148G: T1/J1 Single-Chip Transceiver

The Maxim Integrated DS2148G is a versatile single-chip transceiver designed to handle T1 and J1 telecommunication interfaces. This high-performance IC is an ideal solution for a wide range of applications, including voice and data communications, wireless base stations, and network equipment. The DS2148G offers an integrated feature set that simplifies design, reduces board space, and lowers system costs.

Key Features:

• Integrated Line Interface: The DS2148G includes a complete line interface unit (LIU) for T1 and J1 lines, eliminating the need for external components and reducing design complexity.
• Framer and Line Interface in One Chip: Combining both the framer and line interface functions into a single chip, the DS2148G streamlines the design of telecommunication systems.
• Programmable Features: It offers a variety of programmable features such as line build-out settings, pulse shape control, and diagnostic capabilities, which allow for flexibility and customization to meet specific system requirements.
• Robust Diagnostics: With built-in BERT (Bit Error Rate Testing) and loopback capabilities, the DS2148G simplifies troubleshooting and ensures reliable operation.
• Low Power Consumption: Designed with power efficiency in mind, the DS2148G helps reduce overall system power requirements, making it suitable for energy-sensitive applications.

Applications:

• Wireless Base Stations
• PBX Systems
• Network Routers and Switches
• Channel Banks
• Test Equipment

The DS2148G transceiver from Maxim Integrated provides a reliable and cost-effective solution for T1/J1 data transmission. Its integrated design, coupled with advanced features and diagnostics, make it a top choice for engineers and designers working on telecommunications infrastructure. With the DS2148G, Maxim Integrated continues its tradition of delivering high-quality, innovative products that push the boundaries of communication technology.
