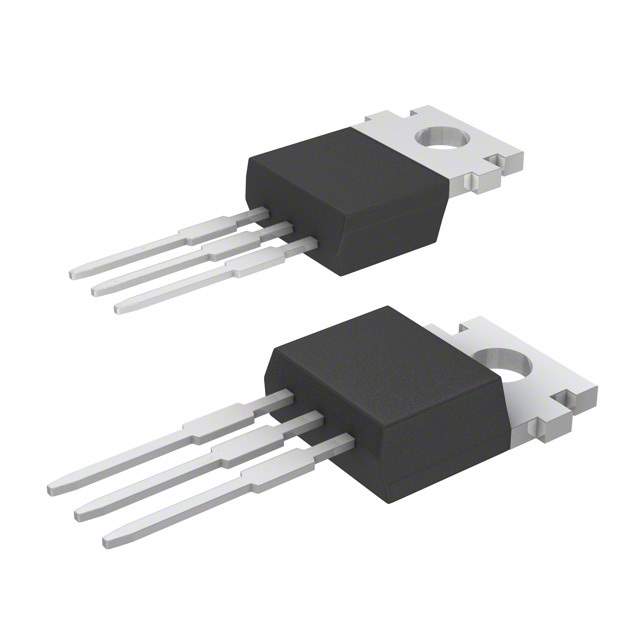

The Littelfuse Inc. 1279017-S6012R is a Standard Recovery SCR type electronic component used in Discrete Semiconductor Products.

• Mounting: Through-Hole
• Maximum Voltage: 600 V
• Maximum Current: 40 mA
• Maximum Gate Trigger Voltage (Vgt): 1.5 V
• Maximum Gate Trigger Current (Igt): 20 mA
• Maximum On-State Voltage (Vtm): 1.6 V
• Maximum On-State Current (It (AV)): 7.6 A
• Maximum Non-Repetitive Surge Current: 100A @ 50 Hz and 120A @ 60 Hz
• Package/Case: TO-220-3
• Operating Temperature Range: -40°C to 125°C
• MSL Level: 1 (Unlimited)
• HTSUS Code: 8541.30.0080
