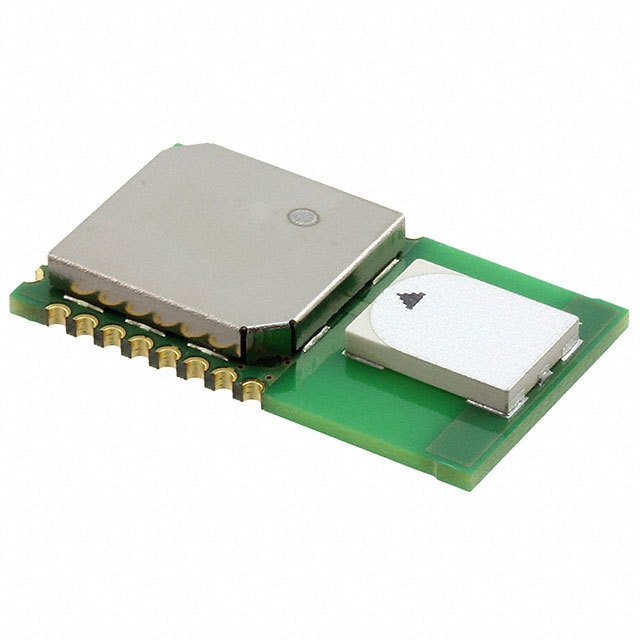

DWM1000 Decawave Limited DWM1000 real image DWM1000 label picture DWM1000 Real Image
Same model may have multiple batches, images only for reference.
DWM1000 Decawave Limited DWM1000 real image DWM1000 label picture DWM1000 Real Image
DWM1000 Decawave Limited DWM1000 real image DWM1000 label picture DWM1000 Real Image
Same model may have multiple batches, images only for reference.

DWM1000

Part No DWM1000
Manufacturer Decawave Limited
Catalog RF Transceiver Modules
Description RF TXRX MODULE 802.15.4 CHIP ANT
Datasheet
DWM1000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Decawave Limited
Packaging Reel package
RF Family/Standard 802.15.4
Protocol IR-UWB
Modulation BPM, BPSK
Frequency 3.5GHz ~ 6.5GHz
Data Rate 6.8Mbps
Serial Interfaces SPI
Antenna Type Integrated, Chip
Operating Supply Voltage 2.8 V ~ 3.6 V
Current - Receiving 64mA
Current - Transmitting 31mA
Mounting SMD
Operating Temperature Range -40°C ~ 85°C
Package Module
Win Source Part Number 773609-DWM1000
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name DWM1000
Introduction Date November 12, 2013
Estimated EOL Date 2022
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian DWM1000 CAD Model

Description

Decawave Limited's DWM1000 module is an integrated chip type device that belongs to the RF/IF and RFID category.

  • Package: Reel
  • Mounting: SMD
  • Frequency Range: 3.5GHz ~ 6.5GHz
  • Operating Supply Voltage: 2.8 V ~ 3.6 V
  • Protocol: IR-UWB
  • Data Rate: 6.8Mbps
  • Antenna: Integrated Chip
  • RF Family/Standard: 802.15.4
  • Sensitivity: Not Specified
  • Power Output: Not Specified
  • Receiving Current: 64mA
  • Transmitting Current: 31mA
  • HTSUS Code: 8504.40.9580
  • Popularity: Popular
  • Supply and Demand Status: Limited
  • Quantity per Package: 500
  • Estimated EOL Date: 2022
