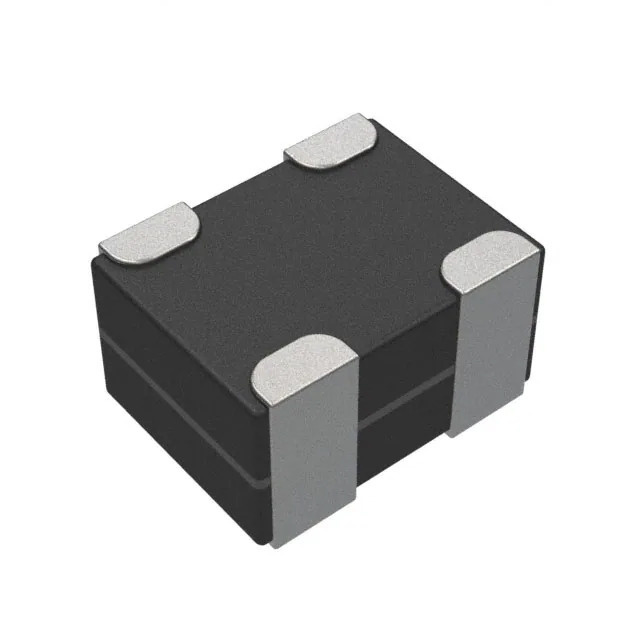

Same model may have multiple batches, images only for reference.
LCF080602A900TG Littelfuse Inc.
Same model may have multiple batches, images only for reference.

LCF080602A900TG

Part No LCF080602A900TG
Manufacturer Littelfuse Inc.
Catalog Common Mode Chokes
Description CMC 100MA 2LN 90 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Littelfuse Inc.
Series LCF
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 90 Ohms @ 100 MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 6Ohm
Voltage Rating - DC -
Voltage Rating - AC -
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.034" L x 0.026" W (0.87mm x 0.67mm)
Height (Max) 0.022" (0.55mm)
Package / Case 0302 (0806 Metric), 4 Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369356-LCF080602A900TG
Ultra Librarian 3D Model Ultra Librarian LCF080602A900TG CAD Model

Description

The LCF080602A900TG is a common mode choke from Littelfuse Inc.

  • Application: Filtering and Suppressing Common Mode Noise
  • Temperature Range: -40°C to 85°C
  • Size: 0.034" L x 0.026" W (0.87mm x 0.67mm)
  • Impedance: 90 Ohms @ 100 MHz
  • Maximum Current: 100mA
  • Status: Active
