Linear Technology LT5575EUF Product Overview

The LT5575EUF is a high-performance upconverting mixer from Linear Technology, designed to cater to the demanding requirements of wireless infrastructure transceiver applications. This versatile device is a perfect fit for various frequency conversion applications due to its wide RF and LO frequency range, making it an integral component in the design of modern communication systems.

Key Features

• Frequency Range: The LT5575EUF offers a broad RF frequency range from 400MHz to 4GHz and a local oscillator (LO) frequency range from 400MHz to 6GHz, providing flexibility for use in a multitude of RF systems.
• High Linearity: With an input IP3 (third-order intercept point) of 24.2dBm at 900MHz, this mixer demonstrates excellent linearity, which is crucial for maintaining signal integrity in complex modulation schemes.
• Conversion Gain: The device delivers a conversion gain of 2dB, ensuring minimal signal loss during the frequency conversion process and contributing to the overall system performance.
• Low Noise Figure: Boasting a low noise figure of 11.3dB, the LT5575EUF helps to maintain a high signal-to-noise ratio, which is essential for clear signal transmission and reception.
• Integrated LO Buffer: An integrated LO buffer simplifies the design by reducing the need for external components, saving board space and potentially lowering system costs.
• Power Supply: The mixer operates from a single 3.3V supply, making it compatible with a wide range of applications without the need for complex power management.

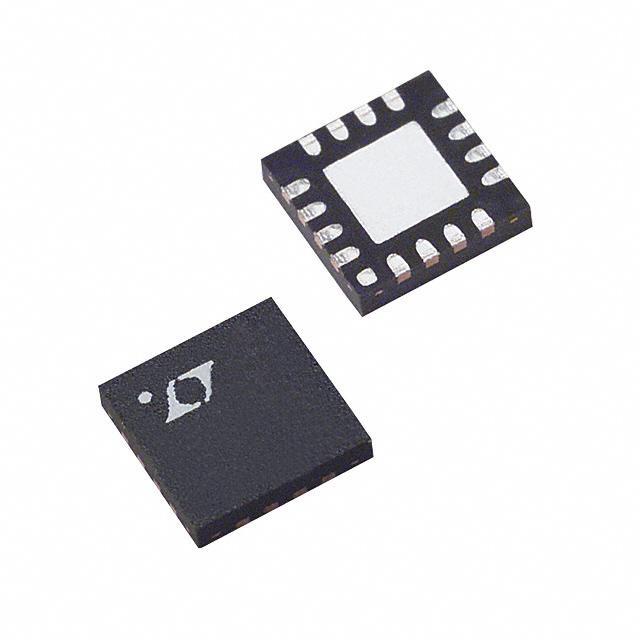

• Package: Enclosed in a compact 16-lead QFN package, the LT5575EUF is designed for space-constrained applications while providing robust performance.

Applications

The LT5575EUF is ideally suited for a variety of applications, including cellular base stations, wireless repeaters, broadband wireless access points, and test equipment. Its high linearity and broad frequency range make it a versatile choice for engineers looking to optimize their RF and microwave signal chains.

Overall, the LT5575EUF from Linear Technology represents a blend of performance, integration, and convenience, making it a top choice for designers in the field of RF and microwave communications.
