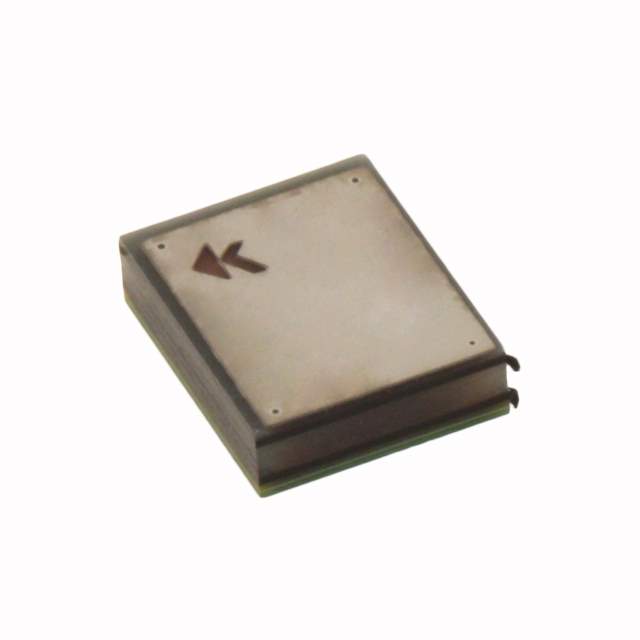

SPM0404LE5H-QB Real Image
Same model may have multiple batches, images only for reference.

SPM0404LE5H-QB

Part No SPM0404LE5H-QB
Manufacturer Knowles
Catalog Microphones
Description MIC MEMS ANALOG OMNI -38DB
Datasheet
SPM0404LE5H-QB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer Knowles
Packaging Reel - TR
Status Obsolete(EOL)
Type MEMS (Silicon)
Output Type Analog
Direction Omnidirectional
Frequency Range 100Hz to 10kHz
Sensitivity -38dB ±3dB @ 94dB SPL
S/N Ratio 62dB
Impedance 300 Ohm
Voltage Range 1.5 to 3.6V
Operating Supply Current 250μA
Port Location Bottom
Termination Surface Mount
Height (Max) 0.053" (1.35mm)
Shape Rectangular
Win Source Part Number 131233-SPM0404LE5H-QB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SPM0404LE5H-QB CAD Model

Description

The Knowles 131233-SPM0404LE5H-QB is a MEMS (Silicon) microphone designed for surface mount applications.

  • Impedance: 300 Ohm
  • Frequency Range: 100Hz to 10kHz
  • Output Type: Analog
  • Direction: Omnidirectional
  • Sensitivity: -38dB ±3dB @ 94dB SPL
  • S/N Ratio: 62dB
  • Voltage Range: 1.5 to 3.6V
  • Operating Supply Current: 250μA
  • Package: Reel
  • Status: Obsolete (EOL)
