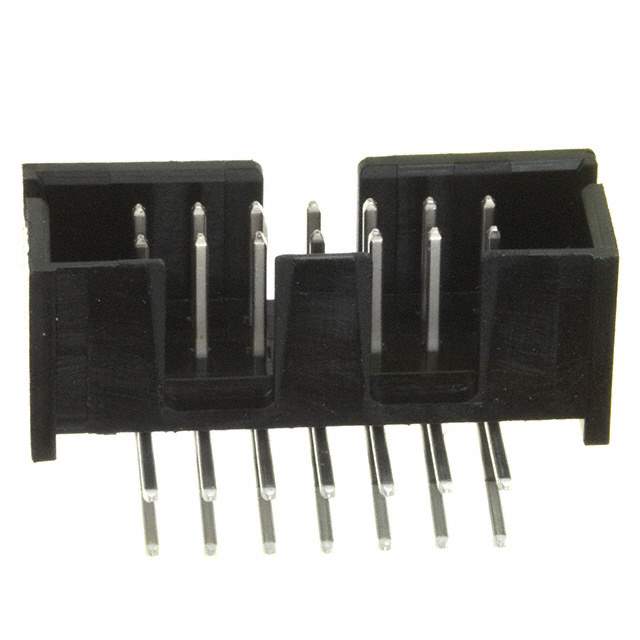

Same model may have multiple batches, images only for reference.

5103311-2

Name: 5103311-2
Brand: TE Connectivity
SKU: 1332793
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	5103311-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 14POS 2.54MM / Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.135" (3.43mm)
Insulation Height	0.360" (9.14mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Brass
Features	Keying Slot
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	5103311
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	51033112,2266-5103311-2,A97486,-5103311-2-SI
Standard Package	100
Win Source Part Number	1332793-5103311-2
Ultra Librarian 3D Model	Ultra Librarian 5103311-2 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1332793-5103311-2 is a male pin header connector with a pitch of 0.100" (2.54mm).

Positions: 14
Packaging: Tube
Feature: Keying Slot
Positions Loaded: All
Termination Type: Solder
Fastening Type: Push-Pull
Contact Material: Brass
Contact Finish (Mating): Gold or Gold-Palladium with 30.0µin (0.76µm) thickness
Contact Finish (Post): Tin with 100.0µin (2.54µm) thickness
Insulation Color: Black
Shrouded: 4 Walls
Row Spacing (Mating): 0.100" (2.54mm)
Contact Length (Post): 0.135" (3.43mm)
Insulation Height: 0.360" (9.14mm)
Contact Shape: Square
Operating Temperature: -65°C ~ 105°C
ECCN: EAR99
MSL Level: 1 (Unlimited)
Current Rating per Contact: 1A
