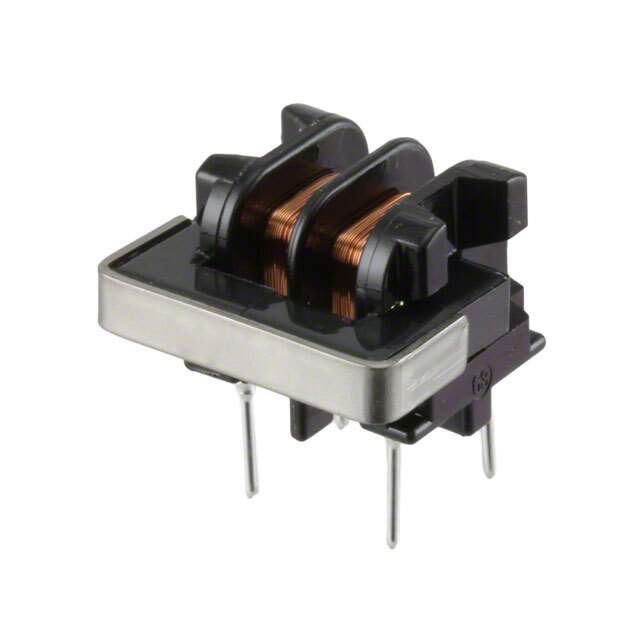

SU9H-01100 Real Image
Same model may have multiple batches, images only for reference.

SU9H-01100

Part No SU9H-01100
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10 mH @ 1 kHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 8Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.492" (12.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9H
Other Names 399-10702,UALSU9H0110000
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276492-SU9H-01100
Ultra Librarian 3D Model Ultra Librarian SU9H-01100 CAD Model

Description

The SU9H-01100 is a common mode choke from KEMET that has a voltage rating of 250V and a current rating of 100mA.

  • Voltage Rating: 250V
  • Current Rating: 100mA
  • Inductance: 10 mH @ 1 kHz
  • DC Resistance (DCR): 8Ohm
  • Maximum Height: 0.492" (12.50mm)
  • Package: Vertical, 4 PC pin
  • Application: Power line filtering
  • Operating Temperature: -25°C to 120°C
