Same model may have multiple batches, images only for reference.

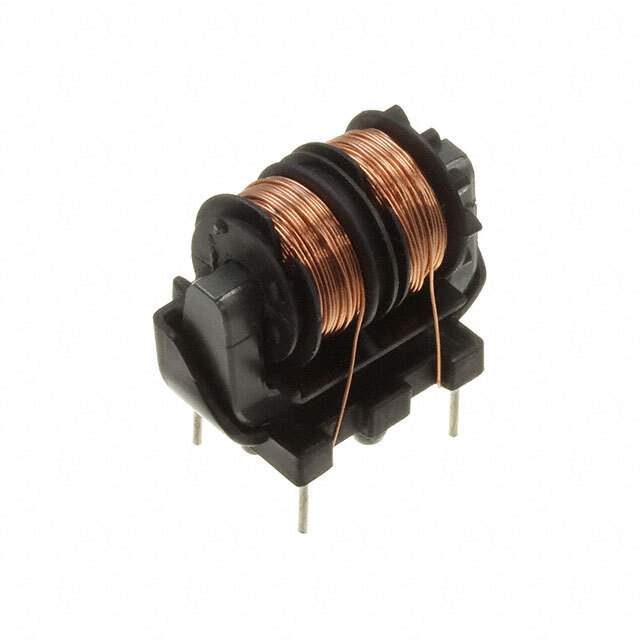

SSR10V-10170 Real Image
Same model may have multiple batches, images only for reference.

SSR10V-10170

Part No SSR10V-10170
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 17MH 1A 2LN TH / 17 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1A DCR 480mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 17 mH @ 10 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 480mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10V
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names UALR10V1017000,399-19030
Standard Package 600
Win Source Part Number 1206897-SSR10V-10170
Ultra Librarian 3D Model Ultra Librarian SSR10V-10170 CAD Model

Description

The KEMET SSR10V common mode choke is designed to provide effective filtering for a range of applications.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 1A
  • Height: 0.827 inches
  • Lines: 2
  • Inductance: 17mH @ 10 kHz
  • DC Resistance: 480mOhm
  • RoHS Compliance: RoHS non-compliant
  • ECCN: EAR99
  • HTSUS: 8548.00.0000
  • Alternative Part: SSR10V10170
