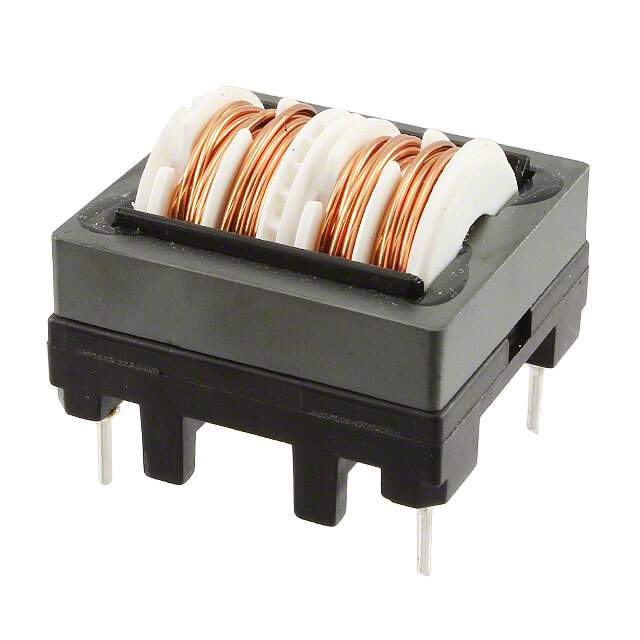

SS35H-20170 Real Image
Same model may have multiple batches, images only for reference.

SS35H-20170

Part No SS35H-20170
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 17 mH @ 1 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 280mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.457" L x 1.378" W (37.00mm x 35.00mm)
Height (Max) 1.181" (30.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS35H
Other Names 399-10693,UAL35H20170000
Standard Package 150
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276784-SS35H-20170
Ultra Librarian 3D Model Ultra Librarian SS35H-20170 CAD Model

Description

The KEMET SS35H-20170 is a common mode choke that is used in various applications.

  • Voltage Rating: 250V
  • Current Rating: 2A
  • Filter Type: Power line
  • Lines: 2
  • Inductance @ Frequency: 17mH @ 1kHz
  • DC Resistance (DCR) (Max): 280mOhm
  • Mounting Type: Through Hole
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range - Operating: -25°C ~ 120°C
The KEMET SS35H-20170 is a high-quality common mode choke that is reliable and durable. It is a great choice for those who are looking for a reliable and high-quality common mode choke.
