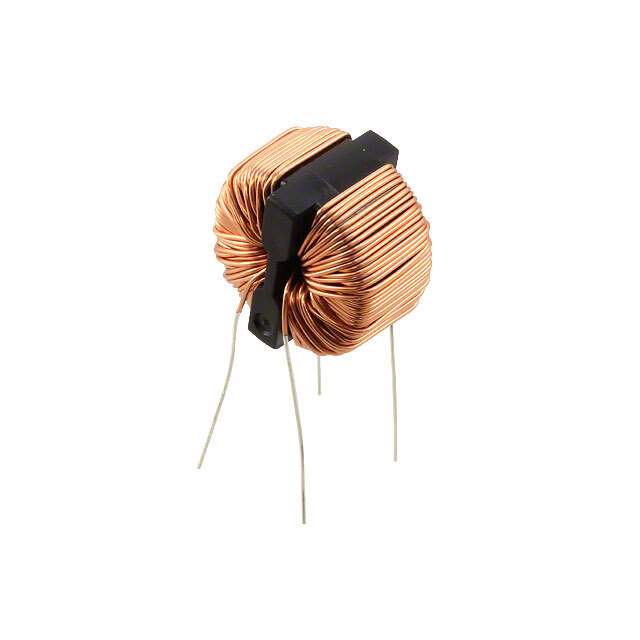

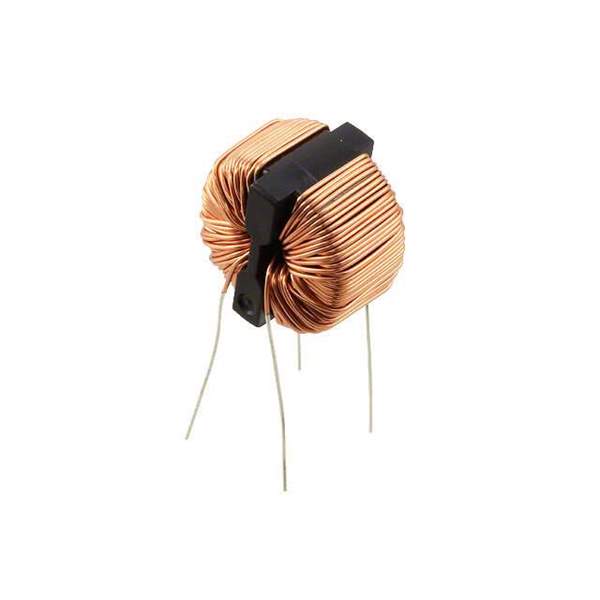

SCF-01-5000 Real Image
Same model may have multiple batches, images only for reference.

SCF-01-5000

Part No SCF-01-5000
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 50 mH @ 10 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 390mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.591" L x 0.472" W (15.00mm x 12.00mm)
Height (Max) 0.591" (15.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SCF-01
Other Names UALSCF01500000,399-10775
Standard Package 1,300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277037-SCF-01-5000
Ultra Librarian 3D Model Ultra Librarian SCF-01-5000 CAD Model

Description

The KEMET SCF-01 series common mode choke is a power line filter designed for through-hole mounting. The KEMET SCF-01 series common mode choke is a reliable choice for filtering power lines in electronic systems.

  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 1A
  • Number of Lines: 2
  • Inductance: 50 mH @ 10 kHz
  • DC Resistance: a maximum of 390mOhm
  • Package: Bulk
  • Mounting: Vertically with 4 PC pins
  • Temperature Range: -25°C to 120°C
  • Dimensions: 0.591" L x 0.472" W (15.00mm x 12.00mm)
