Same model may have multiple batches, images only for reference.

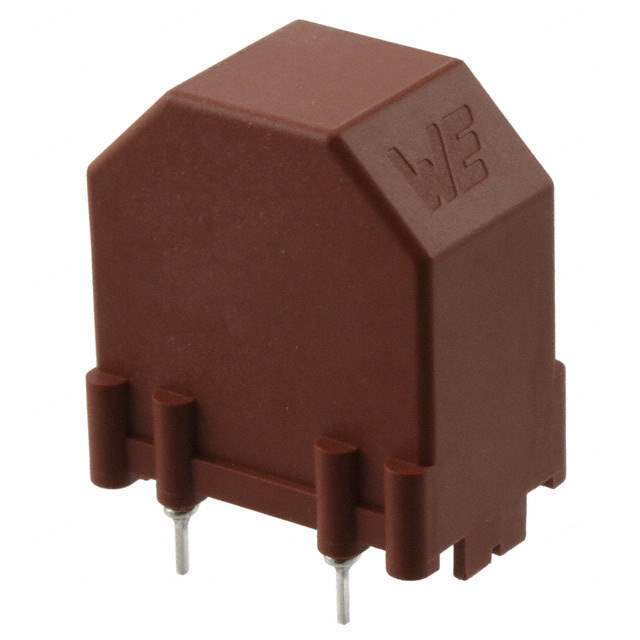

7446322007 Real Image
Same model may have multiple batches, images only for reference.

7446322007

Part No 7446322007
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 6.8MH 1.9A 2LN TH
Datasheet
7446322007 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-LF
Package Tray
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 6.8 mH @ 10 kHz
Current Rating (Max) 1.9A
DC Resistance (DCR) (Max) 160mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 1.043" L x 0.728" W (26.50mm x 18.50mm)
Height (Max) 1.201" (30.50mm)
Package / Case Vertical, 4 PC Pin
Standard Package 66 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857468-7446322007
Ultra Librarian 3D Model Ultra Librarian 7446322007 CAD Model

Description

The WE-LF is a common mode choke manufactured by Wurth Electronics Inc.

  • Application: Power line filtering
  • Voltage Rating: 250V
  • Current Rating: 1.9A
  • Size: 1.043" L x 0.728" W (26.50mm x 18.50mm)
  • Mounting Type: Through-hole
  • Inductance: 6.8 mH @ 10 kHz
  • DC Resistance (DCR): 160mOhm
  • Operating Temperature: -40°C to 125°C
  • Status: Active
  • Applications: Electronic applications where power line filtering is required
