Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 3V
Minimum Breakdown Voltage 6.1V
Power Dissipation - Pd 30W
Applications General Purpose
Capacitance @ Frequency 7pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-882
Win Source Part Number 1037153-ESDAVLC6V1-1BM2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ESDAVLC6V1-1BM2 CAD Model

Description

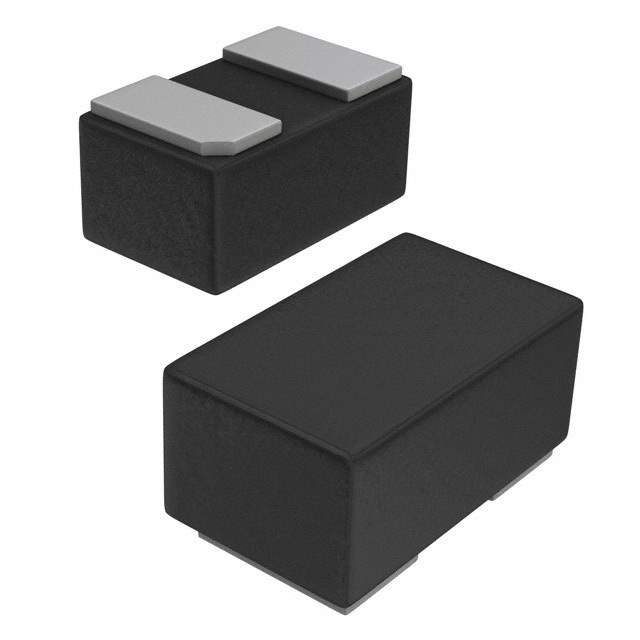

The ESDAVLC6V1-1BM2 is a state-of-the-art bidirectional single-line Transient Voltage Suppressor (TVS) from STMicroelectronics, designed to protect sensitive electronics from the damaging effects of Electrostatic Discharge (ESD). This TVS diode array is part of ST's ESDA series, offering a high level of protection for high-speed data lines and other vulnerable circuits.

Key Features:

  • Low Clamping Voltage: The device provides excellent clamping performance, ensuring that voltage spikes are kept to a minimum to protect sensitive circuit components.
  • High ESD Protection: It can withstand ESD discharges up to 30 kV (air discharge) and 30 kV (contact discharge), according to the IEC 61000-4-2 standard, providing robust protection for your electronics.
  • Low Leakage Current: The ESDAVLC6V1-1BM2 is designed with a very low leakage current, ensuring minimal power consumption when the device is in a standby state.
  • Small Package: Housed in a SOD-882 package, also known as ST’s Micro-QFN-2L, it offers a compact footprint for space-constrained applications.
  • Fast Response Time: The device reacts quickly to transient events, offering a prompt response to ESD strikes, thereby protecting the circuit without delay.
  • Bidirectional Protection: Suitable for protecting one data line or other I/O port, this diode provides bidirectional protection, simplifying circuit design.

Applications:

The ESDAVLC6V1-1BM2 is ideal for a wide range of applications where ESD protection is critical. These include:

  • USB 2.0 and 3.0 ports
  • HDMI and DisplayPort interfaces
  • Antenna connections
  • Smartphones, tablets, and other portable devices
  • High-speed data lines in consumer electronics
  • Industrial controls and automation systems

Conclusion:

With its robust design and superior protection capabilities, the ESDAVLC6V1-1BM2 from STMicroelectronics is an excellent choice for safeguarding high-speed data lines and sensitive electronic components from the threats of ESD. Its small form factor and low power consumption make it an ideal solution for a multitude of applications in both commercial and industrial settings.
