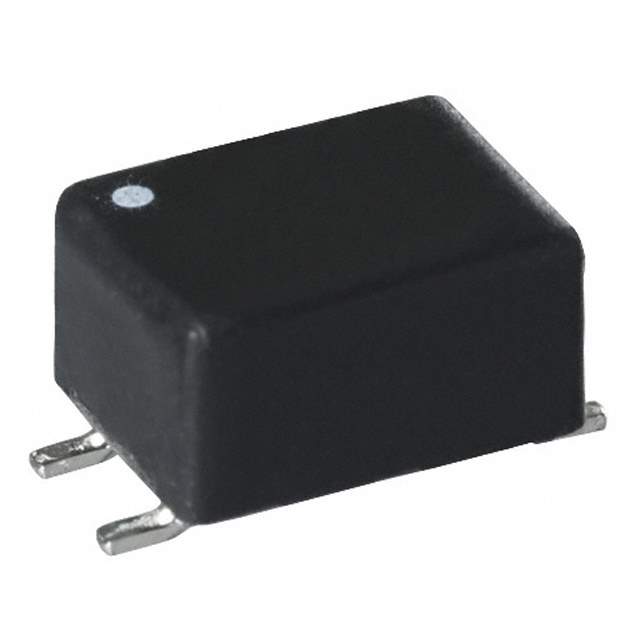

CC2824E513R-10

Part No CC2824E513R-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 51UH 800MA 2LN 3.8 KOHM SMD
Datasheet
CC2824E513R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 3.8 kOhm @ 50MHz
Inductance @ Frequency 51μH @ 100kHz
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 300 mOhm
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.193" (4.90mm)
Dimension Horizontal, 4 Flat Lead
Win Source Part Number 1028061-CC2824E513R-10
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CC2824E513R-10 CAD Model

Description

The CC2824E513R-10 is a signal line filter from Laird-Signal Integrity Products.

  • Packaging: Reel-TR
  • Voltage Rating: 42V AC, 80V DC
  • Current Rating: 800mA
  • Mounting: Surface-Mounted Device (SMD)
  • Height: 0.193 inches (4.90mm)
  • Lines: 2
  • Impedance @ Frequency: 3.8 kOhm @ 50MHz
  • Inductance @ Frequency: 51μH @ 100kHz
  • DC Resistance (DCR): 300 mOhm
  • Temperature Range of Operation: -40°C to 125°C
  • Dimension: Horizontal, 4 Flat Lead
  • Popularity: Medium
