Category Integrated Circuits (ICs)>Linear - Amplifiers - Audio
Mfr NXP USA Inc.
Package Tube
Product Status Not For New Designs
Type Class D
Output Type 1-Channel (Mono) or 2-Channel (Stereo)
Max Output Power x Channels @ Load 150W x 1 @ 2Ohm; 70W x 2 @ 4Ohm
Voltage - Supply 8V ~ 24V
Features Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection
Mounting SMD (SMT)
Supplier Device Package 36-HSOP
Package / Case 36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Base Product Number TDF8599
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Other Names 935306578512
Standard Package 720
Win Source Part Number 1110700-TDF8599BTH/N1CS
Ultra Librarian 3D Model Ultra Librarian TDF8599BTH/N1CS CAD Model

Description

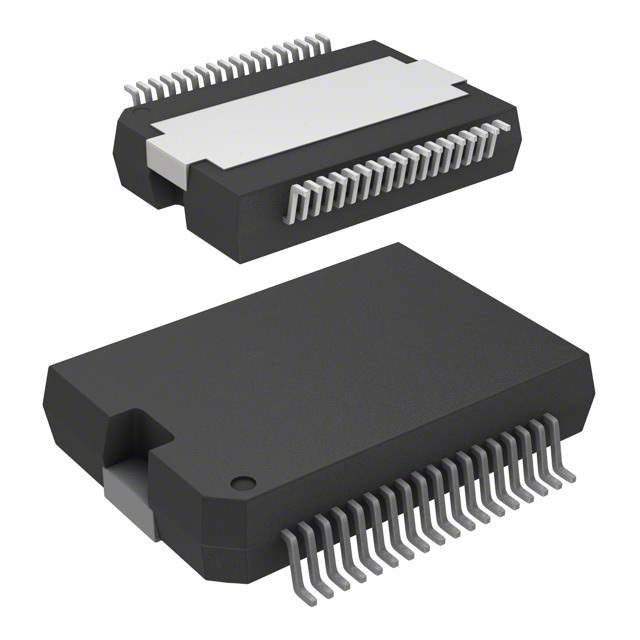

The NXP TDF8599BTH/N1CS is a high-performance, integrated Class-D audio amplifier designed to deliver exceptional sound quality with high efficiency. This advanced audio solution is perfect for automotive audio applications as well as high-fidelity home audio systems, offering both power and precision to drive a superior listening experience.

Key Features

  • High Output Power: Capable of delivering up to 2 x 140 W into 4 ohm loads, this amplifier can power even the most demanding speakers.
  • Efficiency: With its Class-D architecture, it achieves greater than 90% efficiency, reducing energy consumption and heat dissipation.
  • Advanced Diagnostics: The device includes sophisticated diagnostic capabilities for overtemperature, short-circuit, and under-voltage conditions, ensuring reliable operation and protection for both the amplifier and the speakers.
  • I2C-bus Control: It features an I2C-bus interface for advanced control and diagnostics, allowing for integration with modern digital audio systems.
  • Multiple Switching Modes: The TDF8599BTH/N1CS supports both single-ended and bridge-tied load (BTL) configurations, providing flexibility in application design.

Applications

The NXP TDF8599BTH/N1CS is ideally suited for a variety of applications, including:

  • Car audio amplifiers
  • High-fidelity home audio systems
  • Active loudspeakers
  • Public address systems

Technical Specifications

Parameter Value Output Power (per channel) 2 x 140 W (4 ohm) Efficiency > 90% Load Impedance Compatible with 4, 6, and 8 ohm speakers Supply Voltage 6 V to 36 V THD+N Low Package HSOP24

With its robust design and versatile features, the NXP TDF8599BTH/N1CS stands out as a top choice for audio amplification solutions that require high power, efficiency, and reliability.
