Same model may have multiple batches, images only for reference.

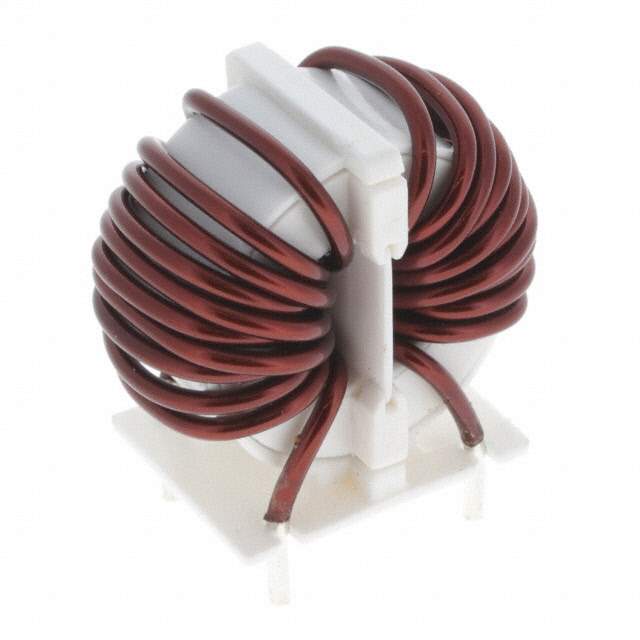

SC-18-10J Real Image
Same model may have multiple batches, images only for reference.

SC-18-10J

Part No SC-18-10J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 700 µH @ 100 kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 20mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.378" L x 0.945" W (35.00mm x 24.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-18
Other Names 399-SC-18-10J,UALSC1810J0000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276939-SC-18-10J
Ultra Librarian 3D Model Ultra Librarian SC-18-10J CAD Model

Description

The KEMET SC series common mode choke is a power line filter designed for use in electronic equipment that requires noise suppression.

  • Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 20A
  • Height: 33.00mm
  • Dimension: 35.00mm x 24.00mm
  • Mounting Type: Through-hole
  • Number of Lines: 2
  • Inductance: 700 µH @ 100 kHz
  • DC Resistance (DCR): 20mOhm
  • Mounting Type: Vertical with 4 PC pins
  • Temperature Range: 25°C to 120°C
  • Choke Type: Molded
  • Package: Tray
  • Standard Package: 200
