Same model may have multiple batches, images only for reference.

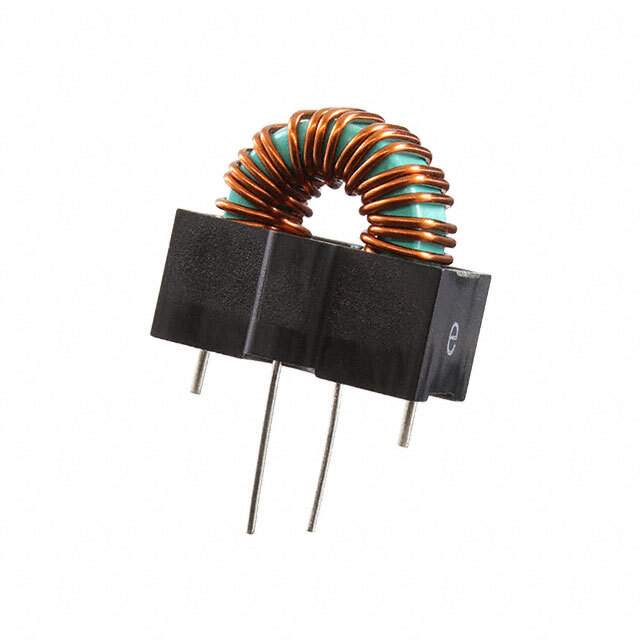

SN8S-400JB Real Image
Same model may have multiple batches, images only for reference.

SN8S-400JB

Part No SN8S-400JB
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN8S-400JB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 46 µH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 70mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max) 0.854" (21.70mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SN8S
Other Names 399-20597,UALSN8S400JB00
Standard Package 420
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276841-SN8S-400JB
Ultra Librarian 3D Model Ultra Librarian SN8S-400JB CAD Model

Description

The KEMET SN8S-400JB is a through-hole common mode choke with a maximum current rating of 2A.

  • Inductance: 46 µH @ 100 kHz
  • DC Resistance: 70mOhm
  • Package: Horizontal, 4 PC Pin
  • Size: 0.709" L x 0.492" W (18.00mm x 12.50mm)
  • Maximum Height: 0.854" (21.70mm)
  • Suitable For: Power Line Filtering
  • Temperature Range: -25°C to 105°C
  • Standard Package: 420
