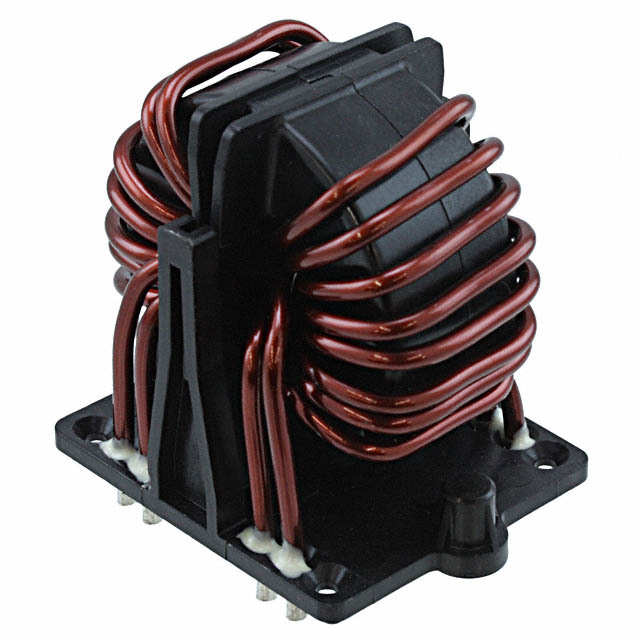

Same model may have multiple batches, images only for reference.
RD5122-6-9M6 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

RD5122-6-9M6

Part No RD5122-6-9M6
Manufacturer TE Connectivity
Catalog Common Mode Chokes
Description CMC 9.6MH 6A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 9.6 mH @ 1 kHz
Current Rating (Max) 6A (Typ)
DC Resistance (DCR) (Max) 52.55mOhm (Typ)
Voltage Rating - DC 850V
Voltage Rating - AC 600V
Temperature Range - Operating -25°C ~ 110°C
Mounting Type Through Hole
Size / Dimension 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height (Max) 1.398" (35.50mm)
Case / Package Horizontal, 4 PC Pin
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1530600-RD5122-6-9M6
Ultra Librarian 3D Model Ultra Librarian RD5122-6-9M6 CAD Model
