Same model may have multiple batches, images only for reference.

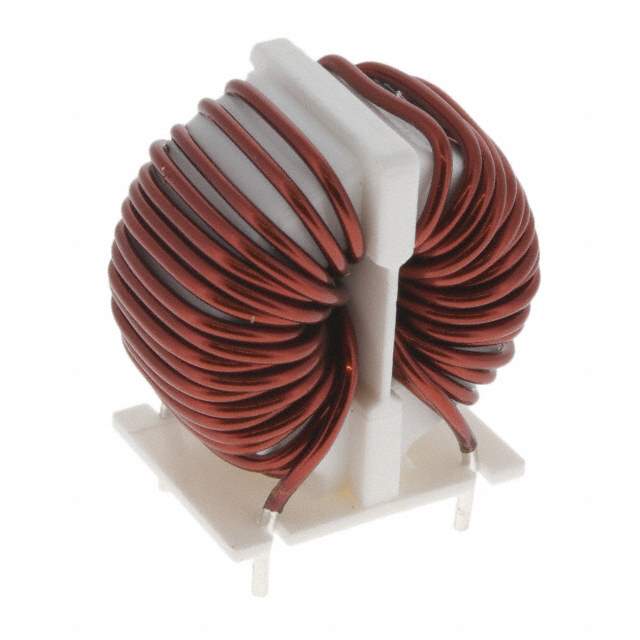

SC-10-18J Real Image
Same model may have multiple batches, images only for reference.

SC-10-18J

Part No SC-10-18J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.6 mH @ 1 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 20mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.339" L x 0.945" W (34.00mm x 24.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-10
Other Names 399-SC-10-18J,UALSC1018J0000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277003-SC-10-18J
Ultra Librarian 3D Model Ultra Librarian SC-10-18J CAD Model

Description

The SC-10-18J from KEMET is a common mode choke designed for use in a variety of filter applications.

  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 10A
  • Standard Package: 200
  • Filter Type: Power line
  • Height: 1.299 inches
  • Lines: Two
  • Inductance: 1.6 mH @ 1 kHz
  • DC Resistance (DCR): 20mOhm
  • Mounting: Through-hole
  • Package: Vertical, 4 PC pin
  • Temperature Range: 25 to 120 degrees Celsius
