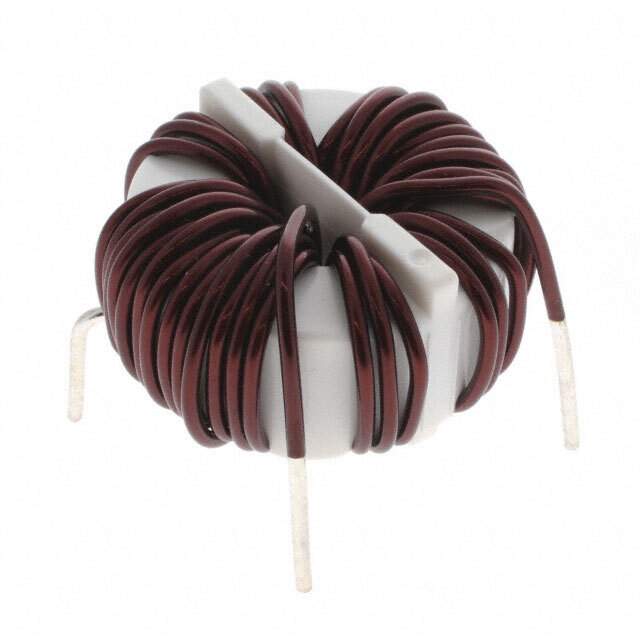

SC-05-203 Real Image
Same model may have multiple batches, images only for reference.

SC-05-203

Part No SC-05-203
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 100 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 70mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.260" Dia (32.00mm)
Height (Max) 0.866" (22.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-05
Other Names 399-SC-05-203,UALSC052030000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277061-SC-05-203
Ultra Librarian 3D Model Ultra Librarian SC-05-203 CAD Model

Description

The KEMET SC-05-203 is a common mode choke filter designed for use in power line applications.

  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 5A
  • Height: 22.00mm
  • Diameter: 1.260"
  • Mounting: Through Hole
  • Package: Horizontal, no base, and 4 PC pin
  • Inductance: 2mH @ 100 kHz
  • DC Resistance (DCR): 70mOhm
  • Temperature Range: -25°C to 105°C
  • Series: SC series
  • Packaging: Bulk
  • Standard Package: 200
