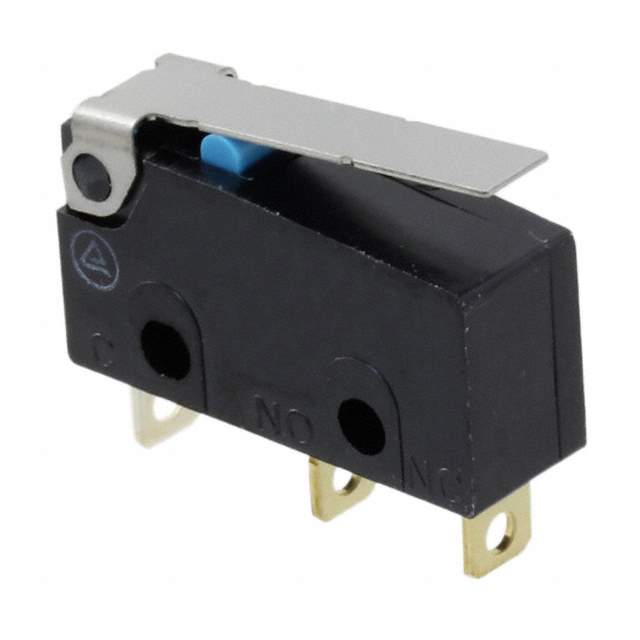

SSG-5L1H Real Image
Same model may have multiple batches, images only for reference.

SSG-5L1H

Part No SSG-5L1H
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SSG
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 61gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -25°C ~ 125°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SSG-5
Other Names SSG5L1H
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233446-SSG-5L1H
Ultra Librarian 3D Model Ultra Librarian SSG-5L1H CAD Model

Description

The Omron SSG series limit switch is a single pole double throw circuit switch with an on-mom switch function.

  • Circuit Switch: Single Pole Double Throw
  • Switch Function: On-Mom
  • Termination Style: Solder Lug
  • Voltage Rating: 125V AC and 30V DC
  • Circuit: SPDT
  • Operating Force: 61gf
  • Mechanical Life: 10,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Release Force: 6.118gf
  • Differential Travel: 0.031 inches (0.8mm)
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -25°C to 125°C
