Same model may have multiple batches, images only for reference.

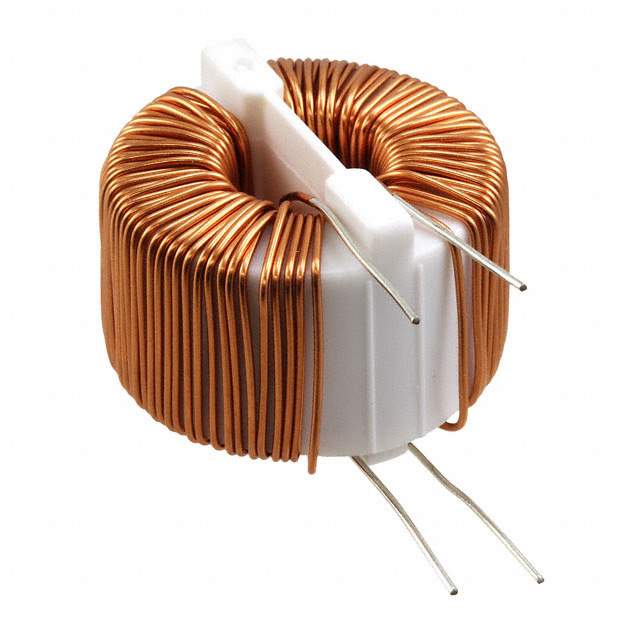

SC-04-1600 Real Image
Same model may have multiple batches, images only for reference.

SC-04-1600

Part No SC-04-1600
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 16 mH @ 1 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 85mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.339" Dia (34.00mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-04
Other Names 399-SC-04-1600,UALSC041600000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277073-SC-04-1600
Ultra Librarian 3D Model Ultra Librarian SC-04-1600 CAD Model

Description

Kemet's SC-04-1600 is a common mode choke filter that is used in power line applications.

  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 4A
  • Inductance @ Frequency: 16 mH @ 1 kHz
  • DC Resistance (DCR) (Max): 85mOhm
  • Mounting: Through-hole
  • Package/Case: Vertical, no base, 4 PC pin
  • Temperature Range: -25°C to 105°C
  • Diameter: 1.339 inches (34.00mm)
  • Package: Bulk
  • Standard Package: 200
  • Manufacturer: Kemet
  • Win Source Part Number: 1277073-SC-04-1600
