Same model may have multiple batches, images only for reference.

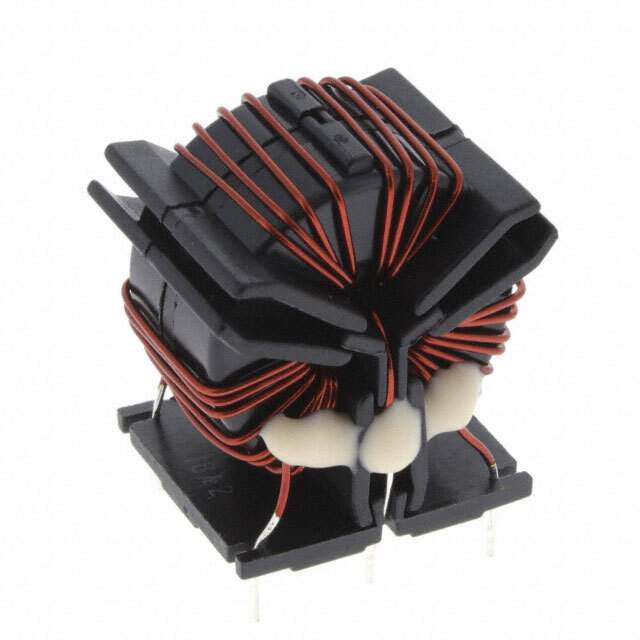

SC-01-S07J Real Image
Same model may have multiple batches, images only for reference.

SC-01-S07J

Part No SC-01-S07J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 700 µH @ 10 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 38 mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.965" L x 0.866" W (24.50mm x 22.00mm)
Height (Max) 1.083" (27.50mm)
Package / Case Vertical, 6 PC Pin
Base Product Number SC-01
Other Names UALSC01S07J000,399-SC-01-S07J
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276926-SC-01-S07J
Ultra Librarian 3D Model Ultra Librarian SC-01-S07J CAD Model

Description

This KEMET common mode choke is a Win Source part number 1276926-SC-01-S07J.

  • Voltage Rating: 250VAC and 250VDC
  • Current Rating: 1A
  • Lines: Three
  • Inductance @ frequency: 700μH @ 10kHz
  • DC Resistance (DCR): 38 mOhm
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 6 PC pin
  • Temperature Range: 25°C to 120°C
  • ECCN: EAR99
  • MSL Level: Not applicable
  • HTSUS code: 8548.00.0000
  • Series: SC series
