Products specifications

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube
Transistor Polarity N-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 800V
Id - Continuous Drain Current 15A
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Maximum) at Id, Vgs 600mOhm at 7.5A, 10V
Gate Source Voltage(th) (Maximum) at Id 4.5V at 4mA
Gate Charge (Qg) (Maximum) at Vgs 200nC at 10V
Gate Source Voltage (Maximum) ±20V
Input Capacitance (Ciss) (Maximum) at Vds 4870pF at 25V
Power Dissipation (Maximum) 300W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole

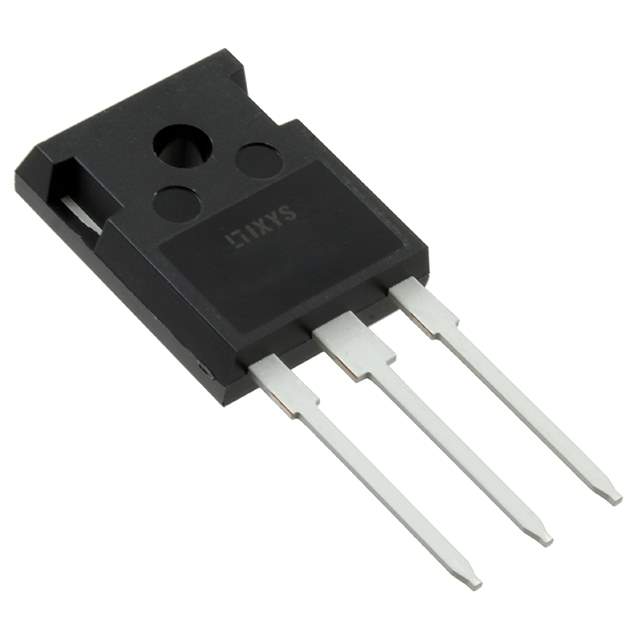

Supplier Device Package TO-247AD (IXFH)
Manufacturer Package TO-247-3
Manufacturer Pack Quantity 30
Win Source Part Number 1191053-IXFH15N80
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IXFH15N80 CAD Model

Description

The IXYS MOSFET is a high-quality electronic component that is designed to deliver superior performance in a range of applications.

  • Drive Voltage: 10V
  • Maximum Power Dissipation: 300W
  • Type: N-channel transistor
  • Continuous Drain Current: Up to 15A
  • Gate Charge: 200nC @ 10V
  • Package: TO-247AD (IXFH) package
  • Breakdown Voltage: 800V
  • Applications: Suitable for use in a range of applications, including power management, motor drive, and control
  • Operating Temperature: -55°C to 150°C
  • Overall: A reliable and high-performance electronic component that is ideal for a wide range of applications
