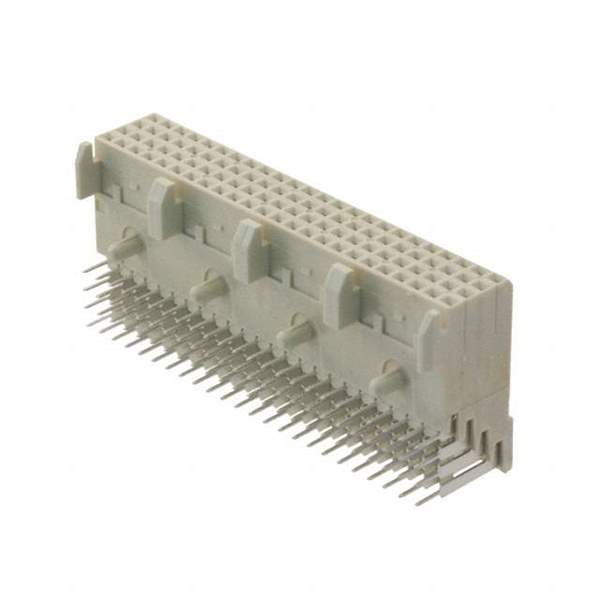

5536507-3 Real Image
Same model may have multiple batches, images only for reference.

5536507-3

Part No 5536507-3
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RCPT FUTUREBUS 96P EDGE MNT / 96 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural Futurebus
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series Z-PACK
Package Tube
Connector Type Receptacle, Female Sockets
Connector Style Futurebus
Number of Positions 96
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 4
Mounting Type Board Edge, Through Hole, Right Angle
Termination Solder
Features Board Guide, Spacer
Contact Finish Gold
Color Natural
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 125°C
Voltage Rating 30V
Base Product Number 5536507
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A31564,2266-5536507-3,-2-42936-9593-SI-ND,55365073,-2-42936-9593-SI,-5536507-3-SI
Standard Package 12
Win Source Part Number 1187333-5536507-3
Ultra Librarian 3D Model Ultra Librarian 5536507-3 CAD Model

Description

The TE Connectivity AMP Connectors electronic component is a specialized backplane connector that is designed to provide reliable performance and high efficiency for electronic devices.

  • Applications: Automotive, industrial, and consumer electronics.
  • Positions: 96 positions
  • Loading: Loaded with all positions.
  • Mounting: Board edge, through-hole, and right angle.
  • Operating Temperature Range: -55°C to 125°C
