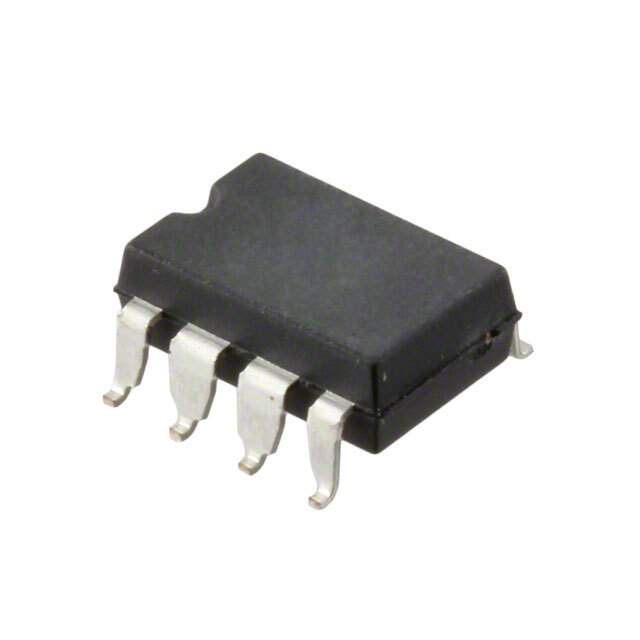

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer IXYS
Packaging Tube
Technology Optical Coupling
Number of Channels 2
Voltage - Isolation 3750Vrms
Propagation Delay tpLH / tpHL (Maximum) 2ms, 0.5ms
Voltage - Forward (Vf) 1.26V
Current - DC Forward (If) (Maximum) 5mA
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 8-SMD, Gull Wing
Supplier Device Package 8-SMD
Approvals EN, IEC, TUV
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1173693-FDA217S
Manufacturer Homepage www.clare.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FDA217S CAD Model

Description

The IXYS FDA217S is a dual channel optocoupler designed for high-speed switching applications. It is manufactured by IXYS.

  • Package: 8-SMD gull-wing
  • Temperature Range: -40°C to 85°C
  • Voltage Isolation: 3750Vrms
  • Current Forward: 5mA
  • Propagation Delay (tpLH/tpHL): 2ms/0.5ms
  • Approvals: EN, IEC, TUV
  • Supply: Limited
  • Pack Size: 50
