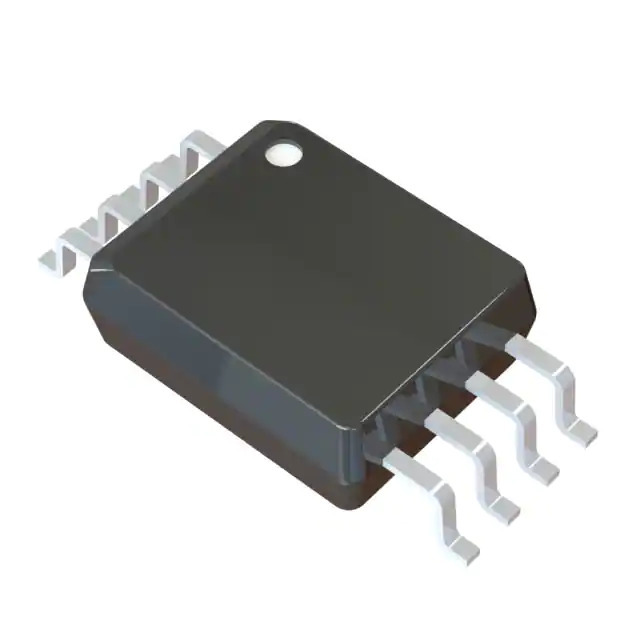

Same model may have multiple batches, images only for reference.
SI823H9BD-IS4 Skyworks Solutions Inc.
Same model may have multiple batches, images only for reference.

SI823H9BD-IS4

Part No SI823H9BD-IS4
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description 5KV GATE DRIVER 8-SSO / 6A Gate Driver Capacitive Coupling 5000Vrms 1 Channel 8-SSO
Datasheet
SI823H9BD-IS4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Si823Hx
Package Tube
Product Status Active
Technology Capacitive Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 125kV/µs
Propagation Delay tpLH / tpHL (Max) 30ns, 30ns
Pulse Width Distortion (Max) 5ns
Rise / Fall Time (Typ) 12ns, 12ns (Max)
Current - Output High, Low 4A, 4A
Current - Peak Output 6A
Voltage - Forward (Vf) (Typ) -
Voltage - Output Supply 5.5V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package 8-SSO
Approval Agency CQC, CSA, UL, VDE
Base Product Number SI823
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1356033-SI823H9BD-IS4
Ultra Librarian 3D Model Ultra Librarian SI823H9BD-IS4 CAD Model

Description

The SI823H9BD-IS4 is an isolator gate driver from Skyworks Solutions Inc.

  • Series: Si823Hx
  • Package: 8-SOIC
  • Application: Isolators
  • Voltage - Isolation: 5000Vrms
  • Current - Output (High, Low): 4A, 4A
  • Peak Output Current: 6A
  • Common Mode Transient Immunity (Min): 125kV/μs
  • Propagation Delay: 30ns
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Approvals: CQC, CSA, UL, VDE
  • Technology: Capacitive Coupling
