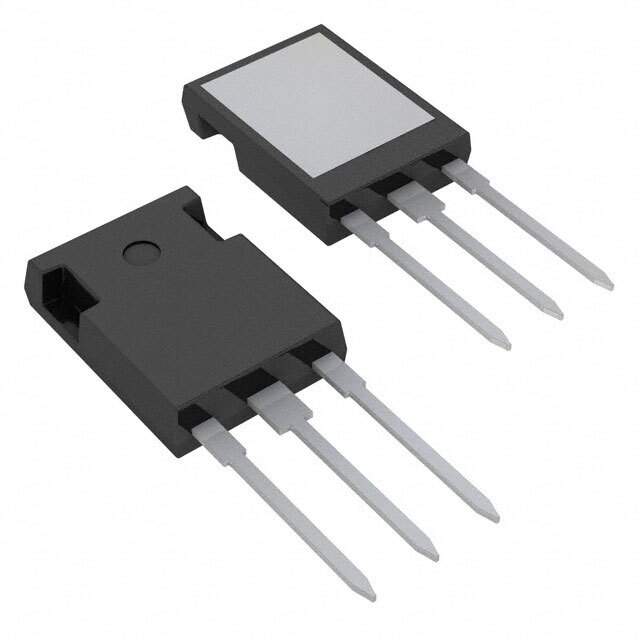

CS45-12IO1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Voltage - Off State 1200V
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Gate Trigger (Igt) (Max) 100mA
Voltage - On State (Vtm) (Max) 1.64V
Current - On State (It (AV)) (Max) 48A
Current - On State (It (RMS)) (Max) 75A
Current - Hold (Ih) (Max) 100mA
Current - Off State (Max) 5mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 520A, 560A
SCR Type Standard Recovery
Temperature Range - Operating -40°C to 140°C
Mounting Through Hole
Case / Package PLUS247-3
Win Source Part Number 1030392-CS45-12IO1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CS45-12IO1 CAD Model

Description

The IXYS 1030392-CS45-12IO1 is a through-hole SCR type electronic component that operates at a voltage of 1200V and a current of 48A.

  • Voltage: 1200V
  • Current: 48A
  • Maximum Gate Trigger Voltage: 1.5V
  • Maximum Gate Trigger Current: 100mA
  • Current Hold (Ih): 100mA
  • Current Off State: 5mA
  • Maximum On-State Voltage: 1.64V
  • Maximum On-State Current: 75A
  • Applications: discrete semiconductor products
  • Status: active
  • Popularity: medium
  • Temperature Range: -40°C to 140°C
  • Package: PLUS247-3
