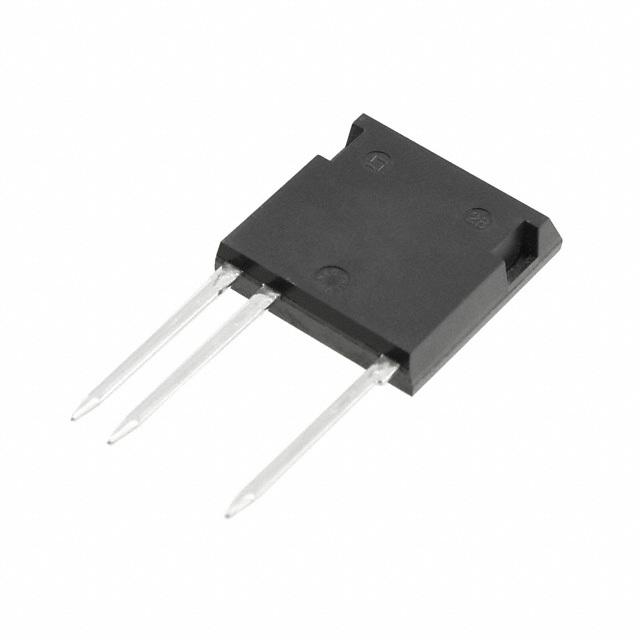

Part No CS20-22MOF1
Manufacturer IXYS
Catalog SCRs - Single
Description High Voltage Phase Control Thyristorin High Voltage ISOPLUS i4-PAC-TM
Datasheet
CS20-22MOF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube
Voltage - Off State 2200V
Voltage - Gate Trigger (Vgt) (Maximum) 2.3V
Current - Gate Trigger (Igt) (Maximum) 250mA
Voltage - On State (Vtm) (Maximum) 1.5V
Current - On State (It (AV)) (Maximum) 18A
Current - Hold (Ih) (Maximum) 150mA
Current - Off State (Maximum) 50μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 200A @ 50Hz
SCR Type Standard Recovery
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole
Package i4-Pac-4, Isolated
Manufacturer Package ISOPLUS i4-PAC
Win Source Part Number 1163086-CS20-22MOF1
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Family Name CS20-22moF1
Introduction Date October 25, 2000
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian CS20-22MOF1 CAD Model

Description

The CS20-22MOF1 is a standard recovery SCR manufactured by IXYS.

  • Voltage Off State: 2200V
  • Maximum Non-Rep. Surge: 200A @ 50Hz
  • Family: CS20-22moF1
  • Package: ISOPLUS i4-PAC package
  • Mounting: Through-hole technology
  • Operating Temperature Range: -40°C to 125°C
  • Voltage Gate Trigger: 2.3V
  • Current Gate Trigger: 250mA
  • Maximum On-State Voltage: 1.5V
  • Maximum On-State Current: 18A
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2023
  • Introduction Date: October 25, 2000
