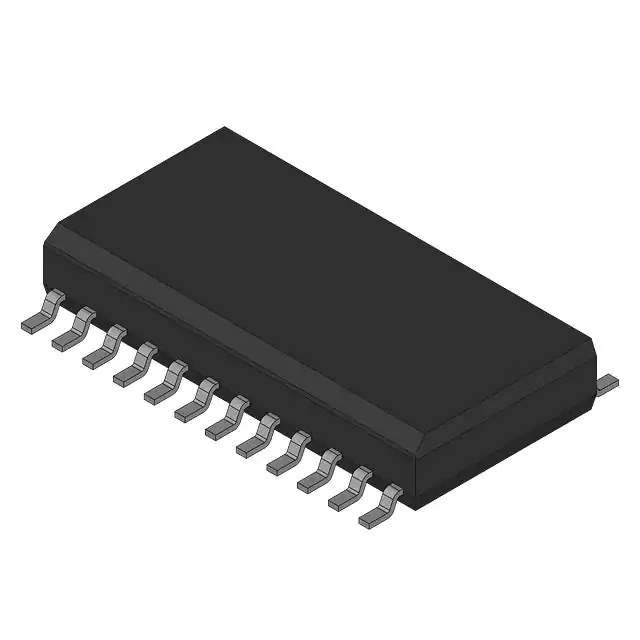

TLE4728G Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Infineon Technologies
Package Bulk
Product Status Active
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Logic
Technology Bipolar
Applications General Purpose
Current - Output 800mA
Voltage - Supply 5V ~ 16V
Voltage - Load 5V ~ 16V
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Surface Mount
Package / Case 24-SOIC (0.295", 7.50mm Width)
Supplier Device Package PG-DSO-24-9
Base Product Number TLE4728
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 369615-TLE4728G
Ultra Librarian 3D Model Ultra Librarian TLE4728G CAD Model

Description

The TLE4728G is a fully integrated motor driver designed for general-purpose applications.

  • Driver Type: Bipolar
  • Current Output: 800mA
  • Features: Logic interface and power stage
  • Output Configuration: Half bridge
  • Voltage Load Range: 5V to 16V
  • Mounting: Surface mountable
  • Package: 24-SOIC
  • Operating Temperature Range: -40°C to 110°C
