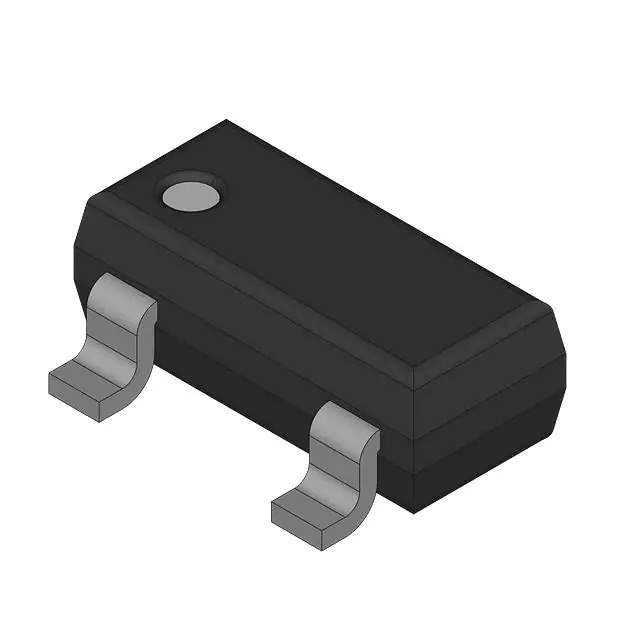

BAW156 Real Image
Same model may have multiple batches, images only for reference.

BAW156

Part No BAW156
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description RECTIFIER DIODE / Diode Array 1 Pair Common Anode 85 V 140mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Infineon Technologies
Package Bulk
Product Status Obsolete
Diode Configuration 1 Pair Common Anode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 85 V
Current - Average Rectified (Io) (per Diode) 140mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 50 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 3 µs
Current - Reverse Leakage @ Vr 5 nA @ 75 V
Operating Temperature - Junction -65°C ~ 150°C
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT23-3 (TO-236)
Base Product Number BAW156
Standard Package 7,230 pcs
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 569055-BAW156
Ultra Librarian 3D Model Ultra Librarian BAW156 CAD Model

Description

The 569055-BAW156 is a diode array used in rectifier applications.

  • Product Name: 569055-BAW156
  • Type: Diode array
  • Application: Rectifier applications
  • Diode Type: Small signal diode
  • Maximum Reverse Voltage: 85V
  • Forward Voltage: 1.1V @ 50mA
  • Reverse Recovery Time: 3µs
  • Reverse Leakage Current: 5nA @ 75V reverse voltage
  • Operating Temperature: -65°C to 150°C
  • Diode Configuration: Common anode pair
  • Average Rectified Current: 140mA per diode
  • Mounting: Surface mount
  • Package: TO-236-3
  • Status: Obsolete product from Infineon Technologies
