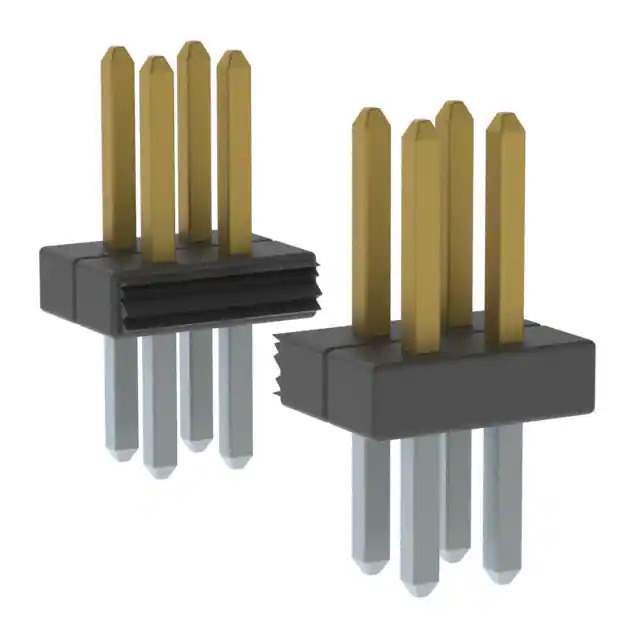

M50-3500542

Name: M50-3500542
Brand: Harwin Inc.
SKU: 845658
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M50-3500542
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 1.27MM / Connector Header Through Hole 10 position 0.050" (1.27mm)
Datasheet	M50-3500542 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Archer M50
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.118" (3.00mm)
Contact Length - Post	0.091" (2.30mm)
Overall Contact Length	0.248" (6.30mm)
Insulation Height	0.039" (1.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Mated Stacking Heights	3.2mm, 4.6mm, 5.4mm, 5.5mm, 6.23mm
Contact Finish Thickness - Post	98.4µin (2.50µm)
Base Product Number	M50-350
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	845658-M50-3500542
Ultra Librarian 3D Model	Ultra Librarian M50-3500542 CAD Model

Description

The 845658-M50-3500542 is a male pin header connector from the Archer M50 series by Harwin Inc.

Positions: 10
Mounting Type: Through Hole
Pitch: 0.050" (1.27mm)
Connection Type: Board to Board or Cable
Fastening Type: Push-Pull
Material: Thermoplastic
