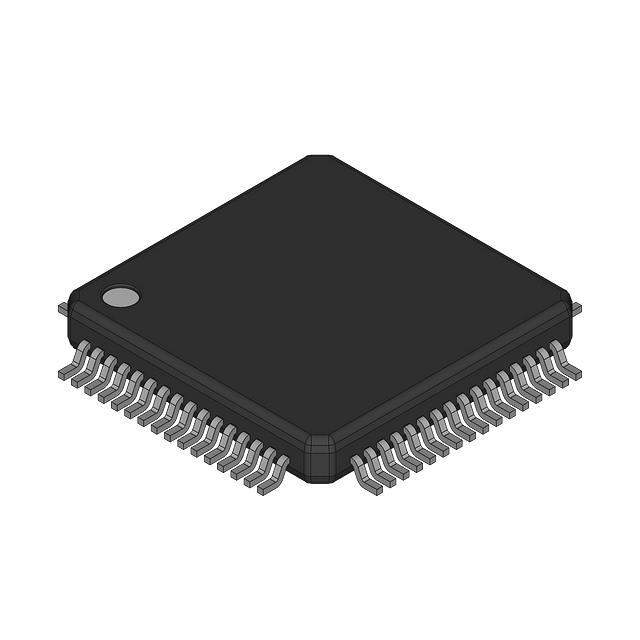

MC56F8247VLHR Real Image
Same model may have multiple batches, images only for reference.

MC56F8247VLHR

Part No MC56F8247VLHR
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - DSP (Digital Signal Processors)
Description IC MCU 16BIT 48KB FLASH 64LQFP / 56800E series Microcontroller IC 16-Bit 60MHz 48KB (24K x 16) FLASH 64-LQFP (10x10)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Freescale Semiconductor
Series 56F8xxx
Package Bulk
Core Processor 56800E
Core Size 16-Bit
Speed 60MHz
Connectivity CANbus, I2C, LINbus, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 54
Program Memory Size 48KB (24K x 16)
Program Memory Type FLASH
RAM Size 4K x 16
Supply Voltage - Operating 3V ~ 3.6V
Data Converters A/D 16x12b; D/A 1x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Package / Case 64-LQFP
Supplier Device Package 64-LQFP (10x10)
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names FREFREMC56F8247VLHR,2156-MC56F8247VLHR
Standard Package 1
Win Source Part Number 963384-MC56F8247VLHR
Ultra Librarian 3D Model Ultra Librarian MC56F8247VLHR CAD Model

Description

The Freescale Semiconductor - NXP MC56F8247VLHR is an integrated circuit microcontroller manufactured by Freescale Semiconductor - NXP.

  • Series: 56F8xxx
  • Core Size: 16-bit
  • Program Memory Size: 48KB (24K x 16)
  • Program Memory Type: FLASH
  • RAM Size: 4K x 16
  • Data Converters: A/D 16x12b, D/A 1x12b
  • Oscillator Type: Internal
  • Package: 64-LQFP
