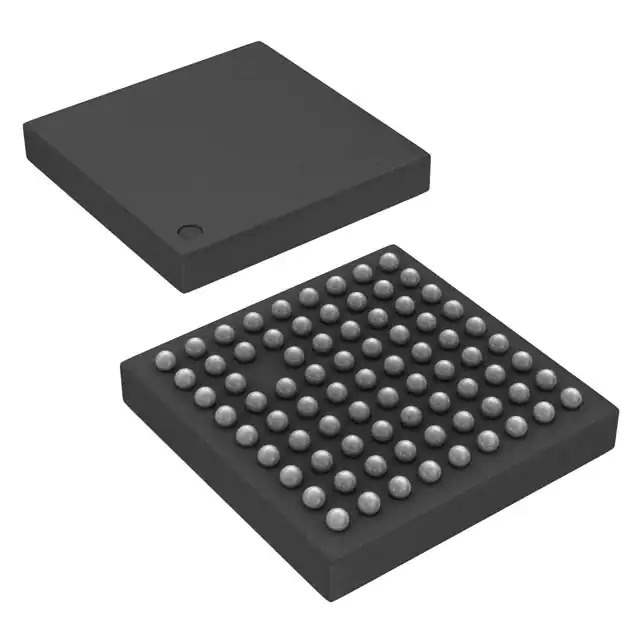

SN65LVDS305ZQER

Part No SN65LVDS305ZQER
Manufacturer Texas Instruments
Catalog Interface - Serializers, Deserializers
Description IC PROG 27BIT SERDES TX 80-BGA / 405Mbps Serializer 27 Input 1 Output 80-BGA MICROSTAR JUNIOR (5x5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Serializers, Deserializers
Mfr Texas Instruments
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Function Serializer
Data Rate 405Mbps
Input Type CMOS
Output Type LVDS
Number of Inputs 27
Number of Outputs 1
Voltage - Supply 1.65V ~ 1.95V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 80-VFBGA
Supplier Device Package 80-BGA MICROSTAR JUNIOR (5x5)
Base Product Number SN65L
Standard Package 2,500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 846603-SN65LVDS305ZQER
Ultra Librarian 3D Model Ultra Librarian SN65LVDS305ZQER CAD Model

Description

Product Overview: SN65LVDS305ZQER by Texas Instruments

The SN65LVDS305ZQER from Texas Instruments is a high-performance, low-voltage differential signaling (LVDS) serializer/deserializer (SerDes) chip designed to facilitate high-speed data transmission. This advanced integrated circuit (IC) is engineered to convert parallel data into serial data and vice versa, enabling rapid and reliable communication between devices, while minimizing the number of data lines required.

Key Features

  • High Data Rates: The device supports data rates up to 1.5 Gbps, making it suitable for high-speed data transmission applications.
  • Low Power Consumption: It operates with a low power supply voltage, contributing to energy-efficient designs.
  • Reduced EMI: The use of LVDS technology helps in reducing electromagnetic interference (EMI), which is critical for maintaining signal integrity in noise-sensitive applications.
  • Hot-Plugging Capability: The SN65LVDS305ZQER can be connected or disconnected from a live backplane without causing damage to the device or data corruption.
  • Robust Operation: The device is designed to operate reliably under harsh industrial conditions.

Applications

Thanks to its high-speed capabilities and robust design, the SN65LVDS305ZQER is ideal for use in a variety of applications, including:

  • Telecommunications infrastructure
  • High-speed data acquisition systems
  • Networking equipment
  • Video transmission systems
  • Industrial control and automation

Technical Specifications

The SN65LVDS305ZQER is offered in a compact 80-pin BGA (Ball Grid Array) package, which is well-suited for space-constrained applications. It operates over a wide temperature range, ensuring reliability across different environmental conditions. The device also provides programmable pre-emphasis and equalization, allowing optimization for various cable lengths and types.

Quality and Support

Texas Instruments is renowned for its commitment to quality and long-term reliability. The SN65LVDS305ZQER is backed by TI's comprehensive technical support and documentation, ensuring that designers can integrate this SerDes solution with confidence into their products.
