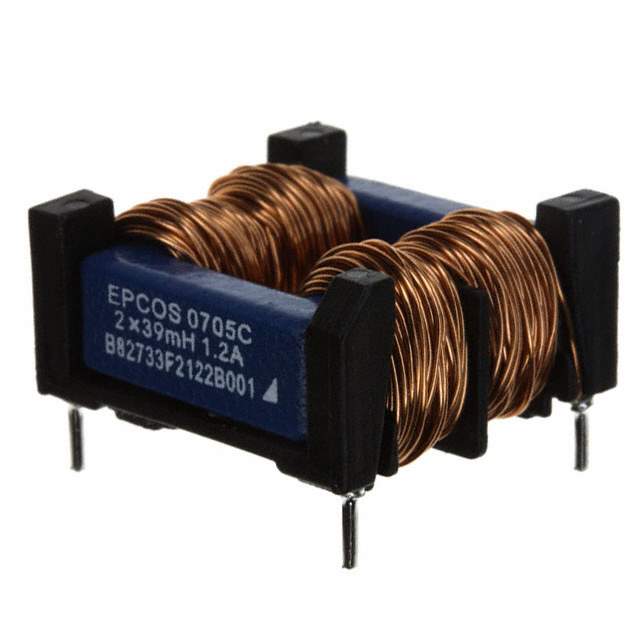

B82733F2122B1 Real Image
Same model may have multiple batches, images only for reference.

B82733F2122B1

Part No B82733F2122B1
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description Common Mode Chokes Dual 39000uH 10kHz 1.2A 0.696Ohm DCR Thru-Hole Box
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals ENEC, UR, VDE
Core Material Ferrite
Current Rating 1.2 A
DC Current 1.2 A
DC Resistance (DCR) 696 mΩ
Depth 24.8 mm
Height 13.9954 mm
Impedance 300 kΩ
Inductance 39 mH
Lead Free Yes
Length 26.5 mm
Max Current Rating 1.2 A
Max DC Current 1.2 A
Maximum Operating Temperature 125 °C
Military Standard Not
Min Operating Temperature -40 °C
Mount Through Hole
Number of Lines 2
RoHS Compliant
Schedule B 8504500000, 8504500000
Shielding Unshielded
Termination Radial
Test Frequency 10 kHz
Tolerance 50 %
Voltage Rating 250 V
Voltage Rating (AC) 300 V
Weight 10.000011 g
Width 24.7904 mm
Win Source Part Number 1047975-B82733F2122B1
Categories Common Mode Chokes
Manufacturer EPCOS (TDK)
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B82733F2122B1 CAD Model

Description

The EPCOS (TDK) B82733F2122B1 common mode choke is a radial termination choke with an inductance of 39 mH and a tolerance of 50%.

  • Voltage: 250 V
  • Current: 1.2 A
  • DC Resistance: 696 mΩ
  • Impedance: 300 kΩ @ 10 kHz
  • Core Material: Ferrite
  • Shielding: Unshielded
  • Height: 13.9954 mm
  • Width: 24.7904 mm
  • Maximum Operating Temperature: 125 °C
  • Minimum Operating Temperature: -40 °C
  • Weight: 10.000011 g
  • Lead-Free: Yes
