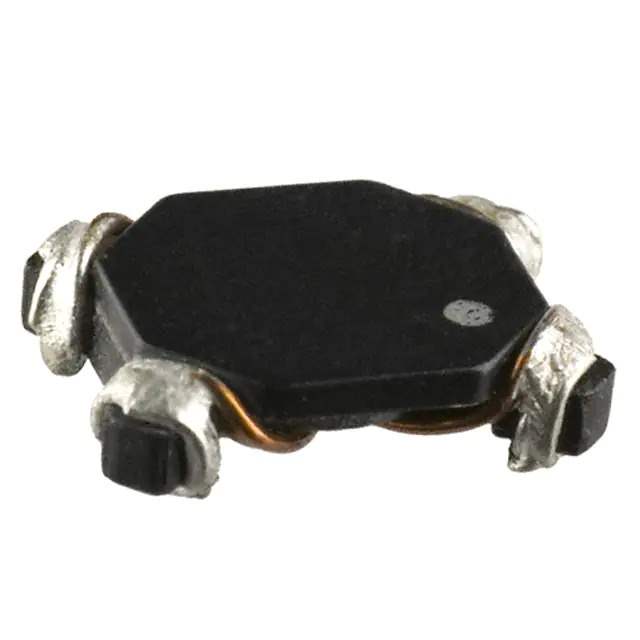

CMS1-7-R Real Image
Same model may have multiple batches, images only for reference.

CMS1-7-R

Part No CMS1-7-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 41.5UH 2.6A 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Eaton Bussmann
Series CMS
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 41.5 µH @ 100 kHz
Current Rating (Max) 2.6A
DC Resistance (DCR) (Max) 19mOhm (Typ)
Temperature Range - Operating -40°C ~ 160°C
Mounting Type Surface Mount
Size / Dimension 0.370" L x 0.283" W (9.40mm x 7.20mm)
Height (Max) 0.102" (2.60mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 579827-CMS1-7-R
Ultra Librarian 3D Model Ultra Librarian CMS1-7-R CAD Model

Description

The 579827-CMS1-7-R is a common mode choke from Eaton Bussmann.

  • Series: CMS
  • Designed for: filtering power line signals
  • Size: 0.370" L x 0.283" W (9.40mm x 7.20mm)
  • Height: 0.102" (2.60mm)
  • Maximum Current Rating: 2.6A
  • Package: tape and reel
  • Standard Package: 2,000 pieces
  • Inductance: 41.5 μH @ 100 kHz
  • DC Resistance (DCR): 19mOhm (typical)
  • Mounting Type: surface mount
  • Package/Case: horizontal with 4 PC pads
  • Temperature Range: -40°C to 160°C
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8548.00.0000
  • Product Status: active
