Same model may have multiple batches, images only for reference.

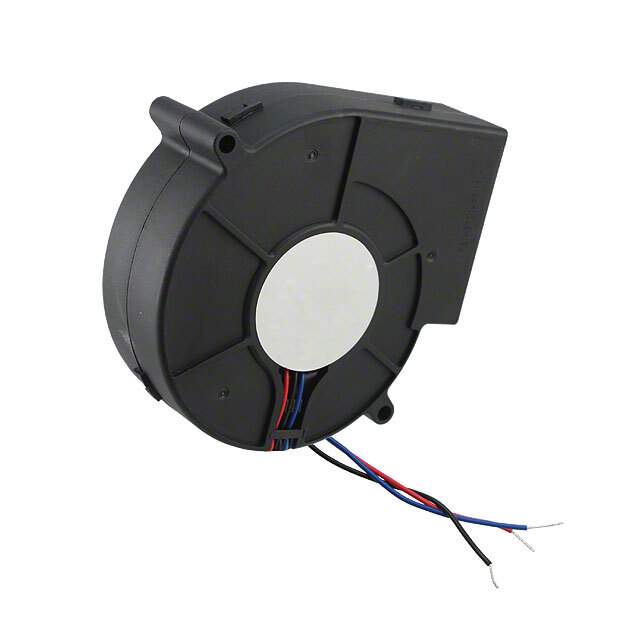

BFB1012EH-AF00 Real Image
Same model may have multiple batches, images only for reference.

BFB1012EH-AF00

Part No BFB1012EH-AF00
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN BLOWER 97.2X33MM 12VDC WIRE / Fan Blower 12VDC Rectangular/Rounded - 97.2mm L x 94.4mm H Ball 46.0 CFM (1.29m³/min) 3 Wire Leads
Datasheet
BFB1012EH-AF00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series BFB
Package Bulk
Voltage - Rated 12VDC
Size / Dimension Rectangular/Rounded - 97.2mm L x 94.4mm H
Width 33.00mm
Air Flow 46.0 CFM (1.29m³/min)
Static Pressure 2.814 in H2O (701.0 Pa)
Bearing Type Ball
Fan Type Blower
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 64.0dB(A)
Power (Watts) 29.4 W
RPM 5300 RPM
Termination 3 Wire Leads
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.397 lb (180.08 g)
Current Rating (Amps) 2.45A
Voltage Range 7 ~ 12.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 50000 Hrs @ 40°C
Base Product Number BFB1012
Standard Package 56
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6560
Win Source Part Number 1348590-BFB1012EH-AF00
Ultra Librarian 3D Model Ultra Librarian BFB1012EH-AF00 CAD Model

Description

Delta Electronics 1348590-BFB1012EH-AF00 is a DC brushless fan that is part of the BFB series.

  • Size: 97.2mm L x 94.4mm H
  • Width: 33.00mm
  • Voltage Range: 7 ~ 12.6VDC
  • Rated Voltage: 12VDC
  • Power: 29.4W
  • Lifetime: 50000 hours @ 40°C
  • Bearing Type: ball
  • Fan Type: blower
  • Noise Level: 64.0dB(A)
  • Air Flow: 46.0 CFM (1.29m³/min)
  • Static Pressure: 2.814 in H2O (701.0 Pa)
  • Material: plastic
