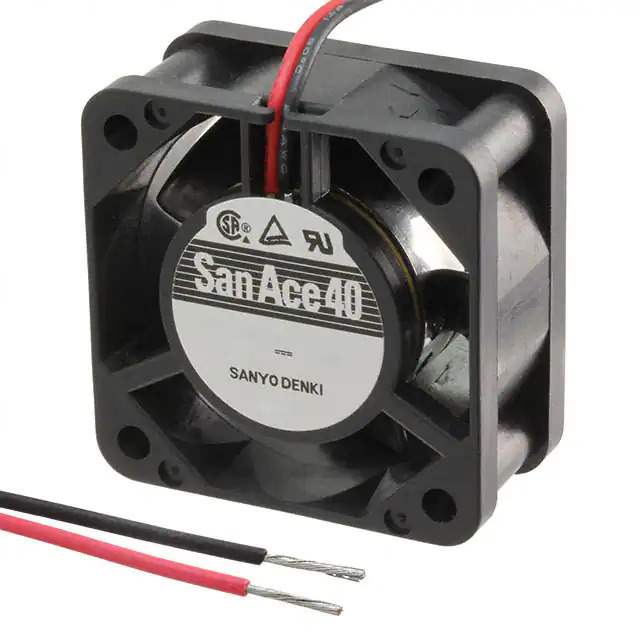

109P0412G302 Real Image
Same model may have multiple batches, images only for reference.

109P0412G302

Part No 109P0412G302
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 40X28MM 12VDC WIRE
Datasheet
109P0412G302 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 40
Package Box
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 40mm L x 40mm H
Width 28.00mm
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 42.0dB(A)
Power (Watts) 3.72 W
RPM 11500 RPM
Termination 2 Wire Leads
Temperature Range - Operating -4 ~ 140°F (-20 ~ 60°C)
Approval Agency CSA, TUV, UL
Weight 0.115 lb (52.16 g)
Current Rating (Amps) 0.390A
Voltage Range 7 ~ 13.2VDC
Material - Frame Plastic
Material - Blade Plastic
Base Product Number 109P0412
Standard Package 126 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 955450-109P0412G302
Ultra Librarian 3D Model Ultra Librarian 109P0412G302 CAD Model

Description

The 955450-109P0412G302 is a DC brushless fan from Sanyo Denki America Inc.

  • Series: San Ace 40
  • Square Dimension: 40mm x 40mm
  • Rated Voltage: 12VDC
  • Power Consumption: 3.72W
  • Protection: Locked rotor protection
  • Weight: 0.115 lb (52.16g)
  • Width: 28.00mm
  • Noise Level: 42.0dB(A)
  • Maximum Rotational Speed: 11500 RPM
  • Applications: Fans, thermal management, and cooling
