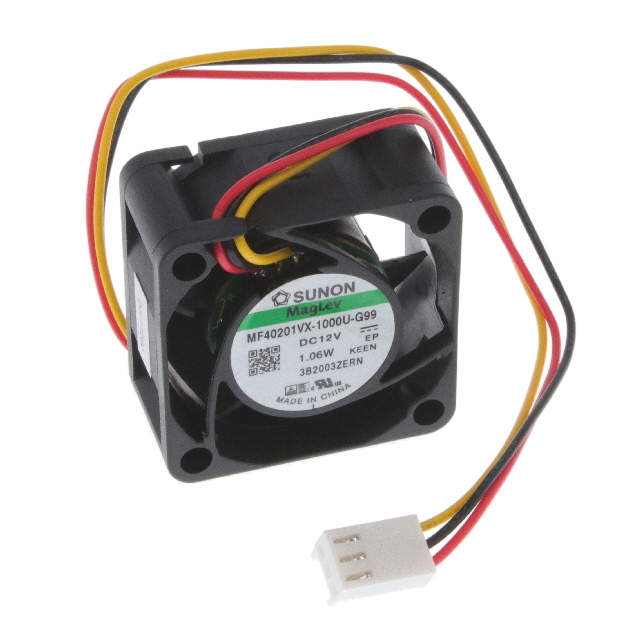

Same model may have multiple batches, images only for reference.
4133/MF40201VX-1000U-G99 Sunon Fans – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

4133/MF40201VX-1000U-G99

Part No 4133/MF40201VX-1000U-G99
Manufacturer Sunon Fans
Catalog Fans, Thermal Management
Description Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Vapo-Bearing™ 10.8 CFM (0.302m³/min) 3 Position Rectangular Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Sunon Fans
Series MagLev® MF
Packaging Bulk
Voltage - Rated 12VDC
Size / Dimension Square - 40mm L x 40mm H
Width 20.00mm
Air Flow 10.8 CFM (0.302m³/min)
Static Pressure 0.290 in H2O (72.2 Pa)
Bearing Type Vapo-Bearing™
Fan Type Tubeaxial
Features Auto Restart, Speed Sensor (Tach)
Noise 27.5dB(A)
Power (Watts) 960 mW
RPM 8000 RPM
Termination 3 Position Rectangular Connector
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency cURus, TUV
Weight 0.064 lb (29.03 g)
Current Rating (Amps) 0.080A
Voltage Range 4.5 ~ 13.8VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number 4133/M
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1481748-4133/MF40201VX-1000U-G99
Ultra Librarian 3D Model Ultra Librarian 4133/MF40201VX-1000U-G99 CAD Model
