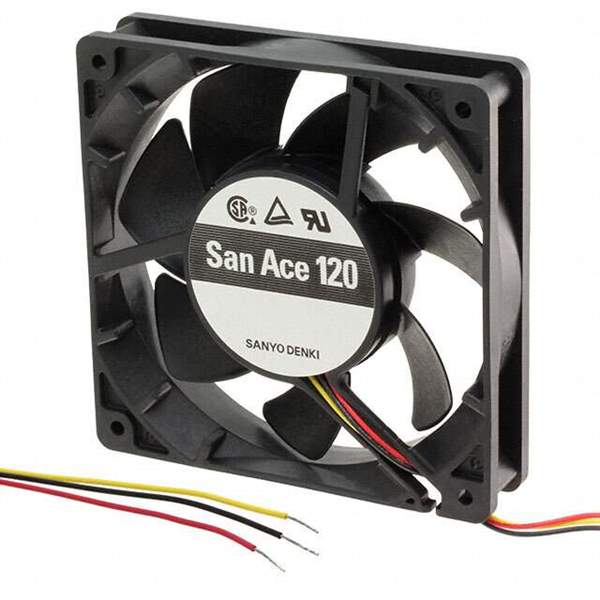

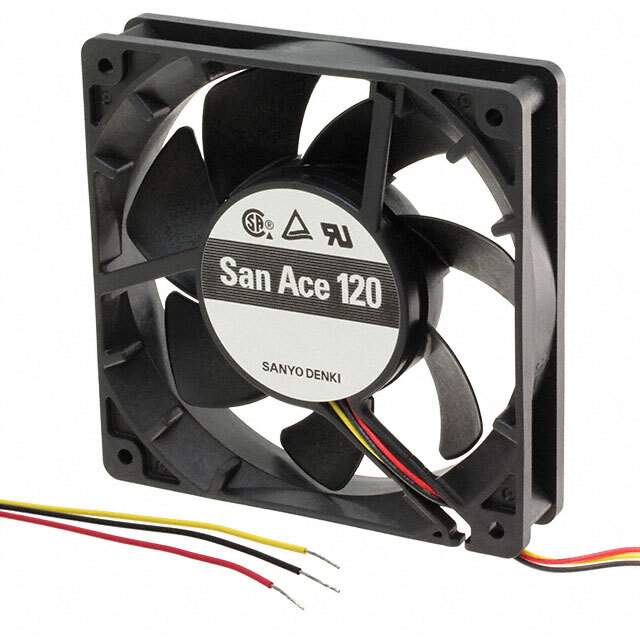

9G1224H4D01 Real Image
Same model may have multiple batches, images only for reference.

9G1224H4D01

Part No 9G1224H4D01
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 119X25MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 88.0 CFM (2.46m³/min) 3 Wire Leads
Datasheet
9G1224H4D01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 120
Package Box
Voltage - Rated 24VDC
Size / Dimension Square - 119mm L x 119mm H
Width 25.00mm
Air Flow 88.0 CFM (2.46m³/min)
Static Pressure 0.257 in H2O (64.0 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Sensor
Noise 40.0dB(A)
Power (Watts) 4.08 W
RPM 2850 RPM
Termination 3 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.529 lb (239.95 g)
Current Rating (Amps) 0.170A
Voltage Range 12 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9G1224
Standard Package 30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1337946-9G1224H4D01
Ultra Librarian 3D Model Ultra Librarian 9G1224H4D01 CAD Model

Description

The San Ace 120 DC Brushless Fan is a high-quality fan designed for thermal management in electronic devices.

  • Manufacturer: Sanyo Denki America Inc.
  • Features: Locked Rotor Sensor, 3 Wire Leads
  • Frame and Blade Material: Plastic
  • Shape: Square
  • Length: 119mm
  • Height: 119mm
  • Voltage Range: 12 ~ 27.6VDC
  • Power Rating: 4.08 W
  • Lifetime: 40000 hours @ 60°C
  • Weight: 0.529 lb (239.95 g)
  • Air Flow: 88.0 CFM (2.46m³/min)
  • Static Pressure: 0.257 in H2O (64.0 Pa)
  • Noise Level: 40.0dB(A)
  • Speed: 2850 RPM
  • Approvals: CSA, TUV, UL
