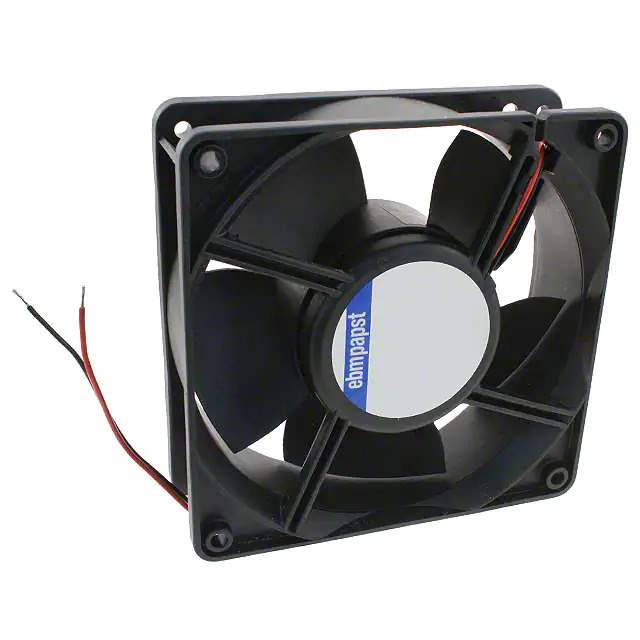

4212L

Part No 4212L
Manufacturer ebm-papst
Catalog Fans, Thermal Management
Description FAN AXIAL 119X38MM 12VDC WIRE
Datasheet
4212L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr ebm-papst
Series 4200
Package Bulk
Product Status Obsolete
Voltage - Rated 12VDC
Size / Dimension Square - 119mm L x 119mm H
Width 38.00mm
Air Flow 51.0 CFM (1.43m³/min)
Bearing Type Ball
Fan Type Tubeaxial
Noise 29.0dB(A)
Power (Watts) 1.2 W
RPM 1600 RPM
Termination 2 Wire Leads
Temperature Range - Operating -4 ~ 167°F (-20 ~ 75°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.639 lb (289.85 g)
Voltage Range 7 ~ 14.5VDC
Material - Frame Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade Polyamide (PA), Nylon, Fiberglass Reinforced
Lifetime @ Temp. 80000 Hrs @ 40°C
Standard Package 25 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 736470-4212L
Ultra Librarian 3D Model Ultra Librarian 4212L CAD Model

Description

The 736470-4212L is a DC brushless fan from ebm-papst. It belongs to the category of fans and thermal management products and is designed for cooling applications.

  • Series: 4200
  • Shape: Square
  • Dimensions: 119mm length, 119mm height
  • Voltage Rating: 12VDC
  • Power Consumption: 1.2W
  • Lifetime: 80000 hours @ 40°C
  • Voltage Range: 7-14.5VDC
  • Air Flow: 51.0 CFM (1.43m³/min)
  • Speed: 1600 RPM
  • Bearings: Ball
  • Noise Level: 29.0dB(A)
