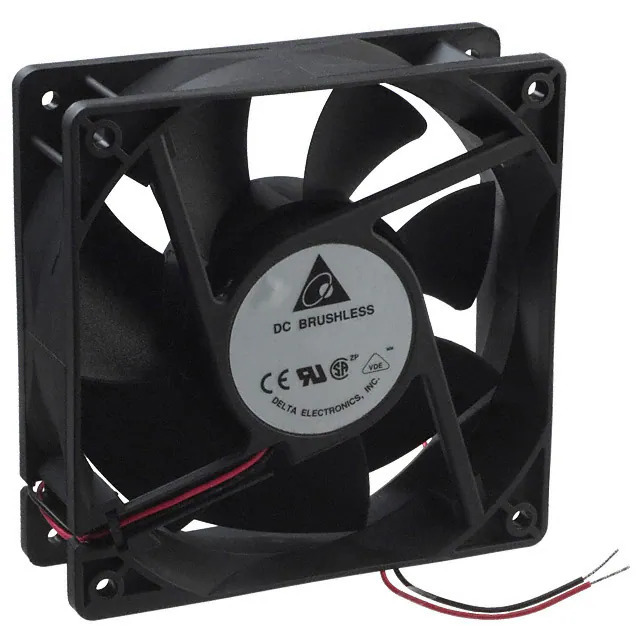

AFB1224VHE Delta Electronics
Same model may have multiple batches, images only for reference.

AFB1224VHE

Part No AFB1224VHE
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 120X38MM 24VDC WIRE
Datasheet
AFB1224VHE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Tray
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 120mm L x 120mm H
Width 38.00mm
Air Flow 130.0 CFM (3.64m³/min)
Static Pressure 0.420 in H2O (104.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 48.0dB(A)
Power (Watts) 9.12 W
RPM 3200 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.565 lb (256.28 g)
Current Rating (Amps) 0.380A
Voltage Range 7 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB1224
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368441-AFB1224VHE
Ultra Librarian 3D Model Ultra Librarian AFB1224VHE CAD Model

Description

The Delta Electronics AFB1224VHE is a high-performance DC brushless fan designed for thermal management in electronic devices.

  • Voltage Rating: 24VDC
  • Current Rating: 0.380A
  • Shape: Square
  • Dimensions: 120mm L x 120mm H
  • Maximum Air Flow: 130.0 CFM
  • Static Pressure: 0.420 in H2O
  • Speed: 3200 RPM
  • Noise Level: 48.0dB(A)
  • Bearing Type: Ball bearing
  • Approvals: CE, CSA, UL, VDE
  • Weight: 0.565 lb
  • Product Status: Active product in the AFB series by Delta Electronics
  • Features: Locked rotor protection
