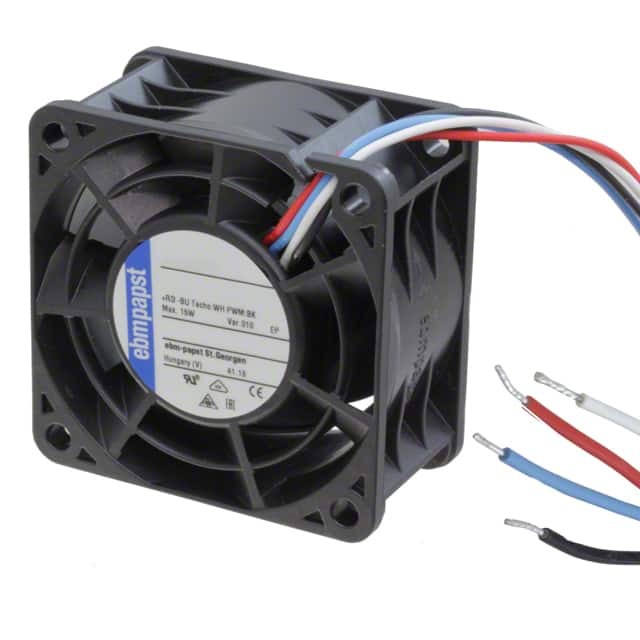

614J/2HHPR-010
Same model may have multiple batches, images only for reference.

614J/2HHPR-010

Part No 614J/2HHPR-010
Manufacturer ebm-papst
Catalog Fans, Thermal Management
Description FAN AXIAL 60X32MM 24VDC WIRE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr ebm-papst
Series 600J
Package Bulk
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 60mm L x 60mm H
Width 32.00mm
Air Flow 48.9 CFM (1.37m³/min)
Static Pressure 2.288 in H2O (570.0 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise 43.0dB(A)
Power (Watts) 14.2 W
RPM 15000 RPM
Termination 4 Wire Leads
Temperature Range - Operating -40 ~ 172°F (-40 ~ 78°C)
Approval Agency CE, UL, VDE
Current Rating (Amps) 0.590A
Voltage Range 18 ~ 30VDC
Material - Frame Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade Polyamide (PA), Nylon, Fiberglass Reinforced
Base Product Number 614J
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 846797-614J/2HHPR-010
Ultra Librarian 3D Model Ultra Librarian 614J/2HHPR-010 CAD Model

Description

The 788306 is a high-performance DC brushless fan from ebm-papst.

  • Series: 600J
  • Shape: Square
  • Dimensions: 60mm x 60mm
  • Rated Voltage: 24VDC
  • Power Consumption: 14.2W
  • Features: Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
  • Speed: 15000 RPM
  • Air Flow: 48.9 CFM
  • Static Pressure: 2.288 in H2O
  • Frame Material: Polybutylene Terephthalate (PBT) and Fiberglass Reinforced
  • Blade Material: Polyamide (PA), Nylon, Fiberglass Reinforced
  • Temperature Range: -40°C to 78°C
  • Approvals: CE, UL, and VDE
