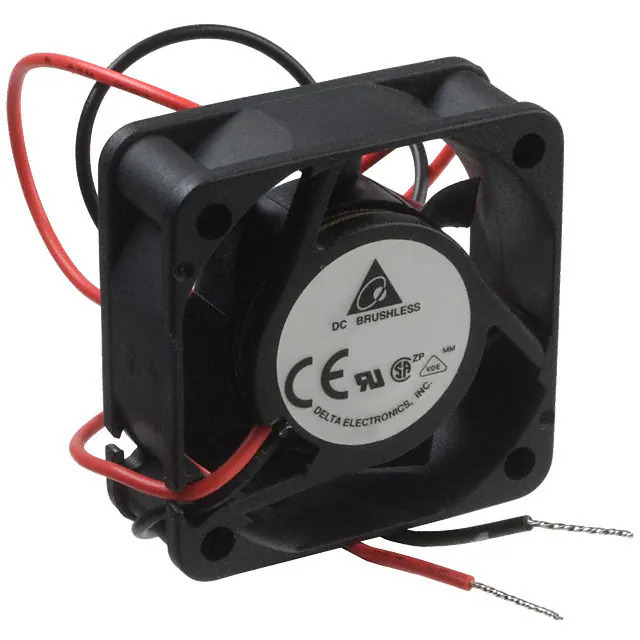

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Tray
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 40mm L x 40mm H
Width 15.00mm
Air Flow 14.8 CFM (0.414m³/min)
Static Pressure 0.601 in H2O (149.7 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 41.5dB(A)
Power (Watts) 3 W
RPM 11000 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.057 lb (25.85 g)
Current Rating (Amps) 0.250A
Voltage Range 7 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0412
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368395-AFB0412SHB
Ultra Librarian 3D Model Ultra Librarian AFB0412SHB CAD Model

Description

The AFB0412SHB is a DC brushless fan designed for thermal management in electronic devices from Delta Electronics.

  • Voltage Rating: 12VDC
  • Current Rating: 0.250A
  • Power Output: 3W
  • Protection: Locked Rotor
  • Size: 40mm x 40mm
  • Airflow: 14.8 CFM
  • Static Pressure: 0.601 in H2O
  • Noise Level: 41.5dB(A)
  • Speed: 11000 RPM (Maximum)
  • Frame and Blade Material: Plastic
  • Approvals: CE, CSA, UL, and VDE
  • Series: AFB
