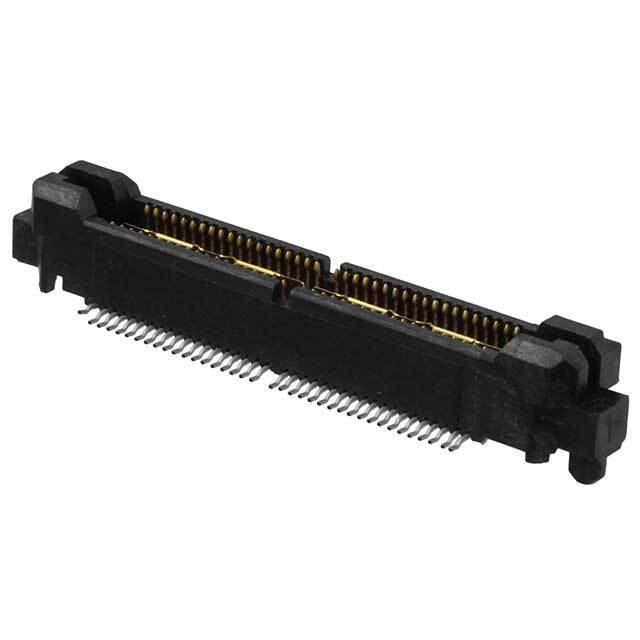

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Plug, Outer Shroud Contacts
Number of Positions 76
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide, Ground Bus (Plane)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 6.6mm, 15.62mm
Height Above Board 0.251" (6.38mm)
Base Product Number 767007
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A29140,2266-767007-9,-767007-9-SI
Standard Package 1,134
Win Source Part Number 1332075-767007-9
Ultra Librarian 3D Model Ultra Librarian 767007-9 CAD Model

Description

The TE Connectivity AMP Connectors 767007-9 is a rectangular connector array.

  • Applications: Telecommunications, Data Communications, and Industrial Equipment
  • Features: Board Guide, Ground Bus
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mated Stacking Height: 6.6mm and 15.62mm
  • Height Above Board: 0.251" (6.38mm)
  • Mounting: Surface Mount
  • Packaging: Tube
