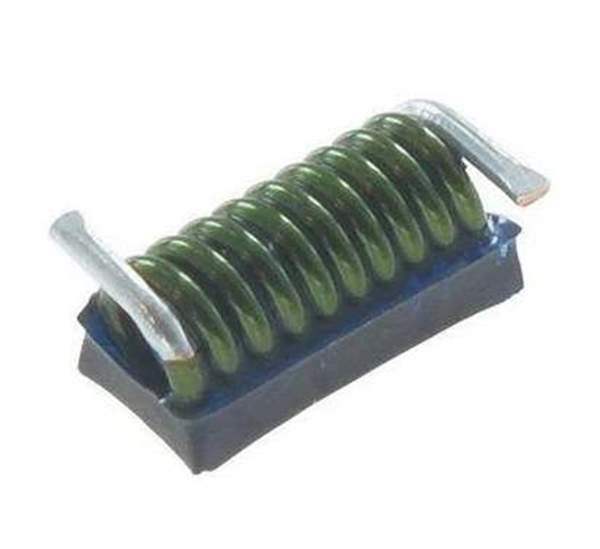

B09TJLC Coilcraft
Same model may have multiple batches, images only for reference.

B09TJLC

Part No B09TJLC
Manufacturer Coilcraft
Catalog RF Inductors - SMD
Description RF Inductors - SMD 35.5nH Unshld 5% 4A 6.8mOhms AECQ2
Datasheet
B09TJLC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Coilcraft
Category RF Inductors - SMD
Type Wirewound
Shielding Unshielded
Inductance 35.5 nH
Tolerance 5 %
Max DC Current 4 A
DC Resistance (DCR) (Max) 6.8 mOhms
Min Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Ultra Librarian 3D Model Ultra Librarian B09TJLC CAD Model

Description

  • Small air core inductors feature high Q and tight tolerances
  • Acrylic jacket provides a flat top for pick and place
  • Solder coated leads ensure reliable soldering
