Same model may have multiple batches, images only for reference.

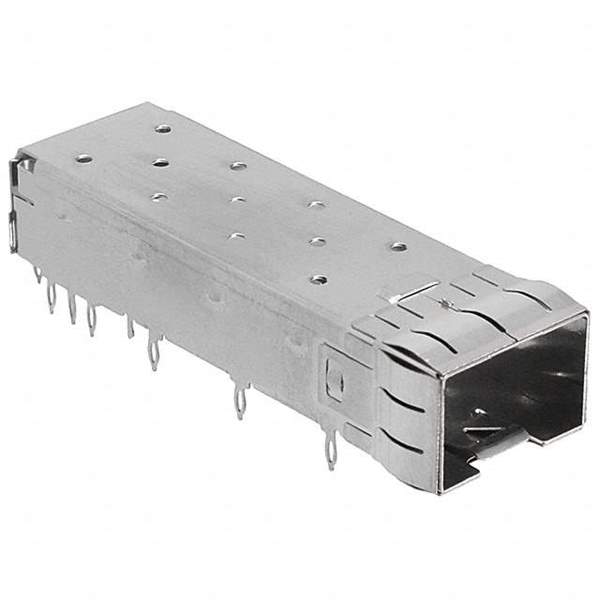

0747540104 Real Image
Same model may have multiple batches, images only for reference.

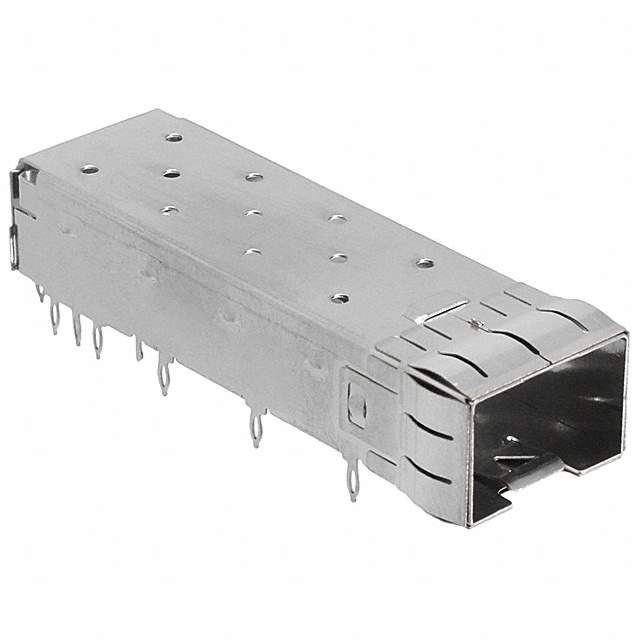

0747540104

Part No 0747540104
Manufacturer Molex, LLC
Catalog Pluggable Connectors
Description CONN SFP+ CAGE PRESS-FIT R/A / Position SFP+ Cage Connector Press-Fit Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr Molex, LLC
Series 74754
Package Tray
Product Status Active
Connector Style Cage
Connector Type SFP+
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Features EMI Shielded
Base Product Number 074754
Standard Package 192 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848905-0747540104
Ultra Librarian 3D Model Ultra Librarian 0747540104 CAD Model

Description

The 848905-0747540104 is a pluggable connector assembly from the 74754 series.

  • Series: 74754
  • Connector Type: SFP+
  • Shielding: EMI Shielding
  • Termination Method: Press-Fit
  • Contact Finish: Not Specified
  • Contact Finish Thickness: Not Specified
  • Package: Tray
  • Standard Package: 192 pieces
  • Mounting: Through-Hole, Right Angle
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8536.69.4040
  • Manufacturer: Molex, LLC
  • Product Status: Active
