Same model may have multiple batches, images only for reference.

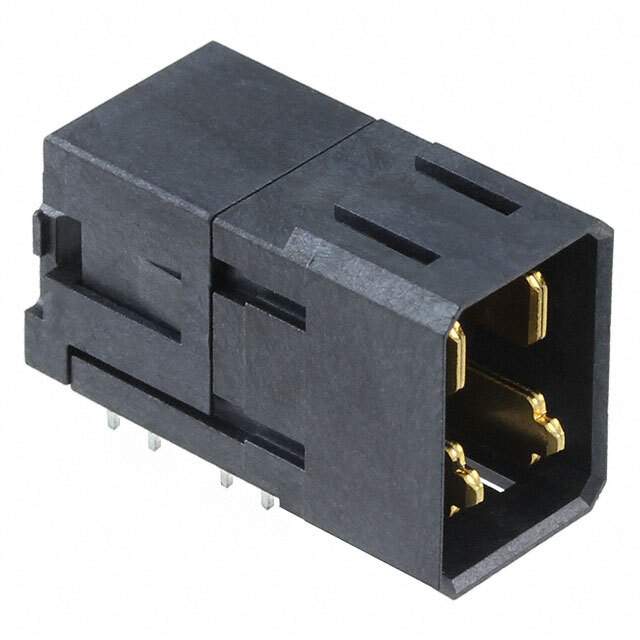

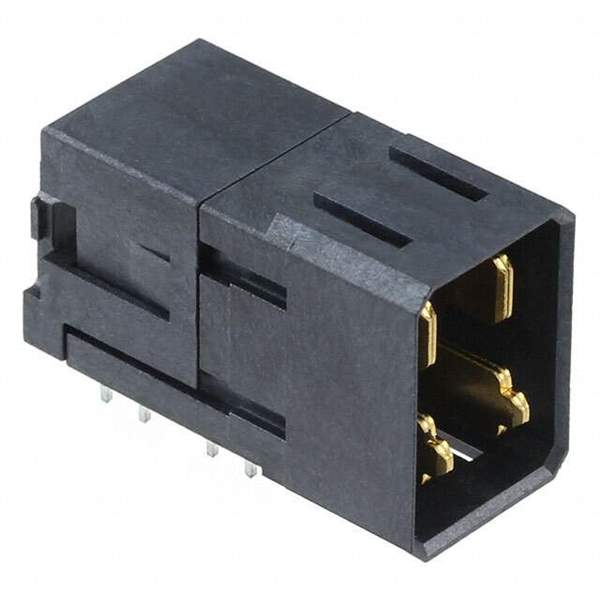

782111044 Real Image
Same model may have multiple batches, images only for reference.

782111044

Part No 782111044
Manufacturer Molex, LLC
Catalog Backplane Connectors
Description Conn Backplane HDR 4Power POS 5.2mm Press Fit RA Thru-Hole Impact™ Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Power
Contact Plating Gold
Contact Resistance 1 mΩ
Country of Origin SG
Depth 23.97 mm
Flammability Rating UL94 V-0
Housing Color Black
Housing Material Polymer
Length 11 mm
Max Operating Temperature 85 °C
Max Voltage Rating (DC) 48 V
Min Operating Temperature -55 °C
Mount Edge, Through Hole
Number of Circuits 4
Number of Pairs 3
Number of Positions 4
Number of Rows 2
Orientation Right Angle
Pitch 5.2 mm
Plating Tin
RoHS Compliant
Shielding No
Termination Press-Fit
Voltage Rating 250 V
Win Source Part Number 1180980-782111044
Categories Backplane Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 782111044 CAD Model

Description

The Molex, LLC 1180980-782111044 is a polymer power connector with four positions and two rows.

  • Pitch: 5.2mm
  • Voltage Rating: up to 250V
  • Current Rating: 3A
  • Termination: press-fit
  • Contact Plating: gold
  • RoHS Compliant: true
  • Supply and Demand Status: limited
  • Application: backplane
